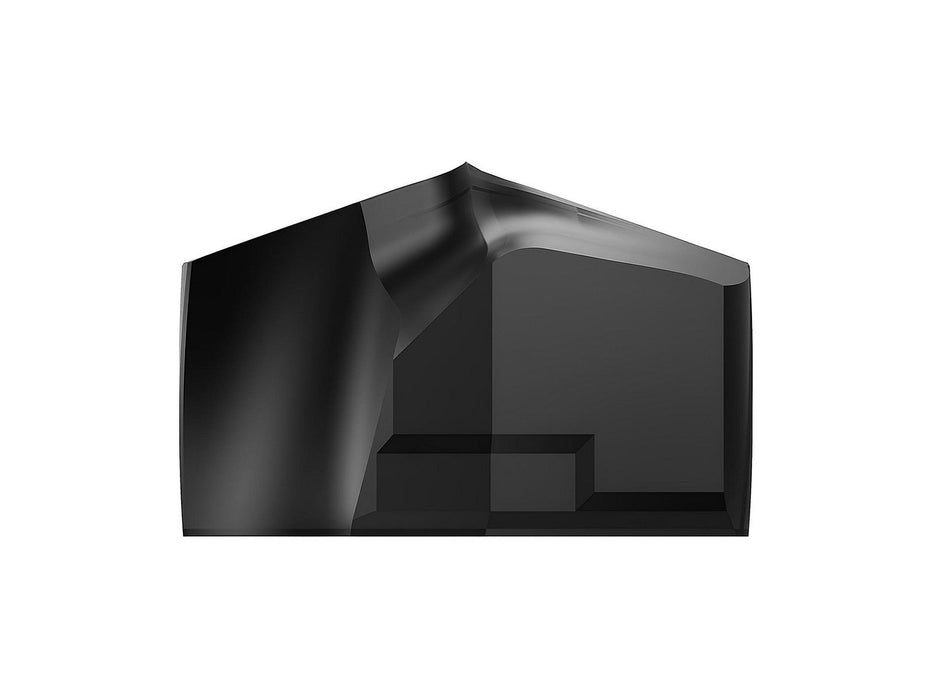

Kennametal KSEM2700HPM KC7315 Replaceable Drill Tip, Carbide, 2036704
Description
Kennametal
Replaceable Drill Tips: KSEM2700HPM KC7315, 1.0630" Dia, 27.00 mm Dia, 140 deg Point, KC7315, Seat Size 6, TiAlN Finish, 2036704
Specs
Cutting Diameter (Decimal Inch) 1.0630
Cutting Diameter (mm): 27.00
Tip Material: Solid Carbide
Manufacturer Grade: KC7315
Material Grade: Fine Grain
Series: KSEM
Coating Process: PVD
Insert Geometry: HP
Insert Seat Size: 6
Functional Length (Decimal Inch): 0.5315
Primary Workpiece Material: Steel
Primary Workpiece Material Code: P
Height (Decimal Inch): 0.5315
Overall Length/Projection (Decimal Inch): 0.5315
Drill Point Angle: 140
Flute Type: Helical
Insert Holding Method: Clamp
ISO Number: KSEM2700HPM
Coolant Through: No
Flute Length (mm): 13.00
Point Type: Standard
Spiral Type: Regular Spiral
Height (Inch): 17/32
Style: KSEM
UNSPSC Code: 23242105
Applications: Drilling
Coating/Finish: TiAlN
Included Angle Degree: 140
Number Of Flutes: 2
Country of Origin: Germany
MPN: 2036704
PKG QTY: 1 PC
Location: SUR-STC-321
