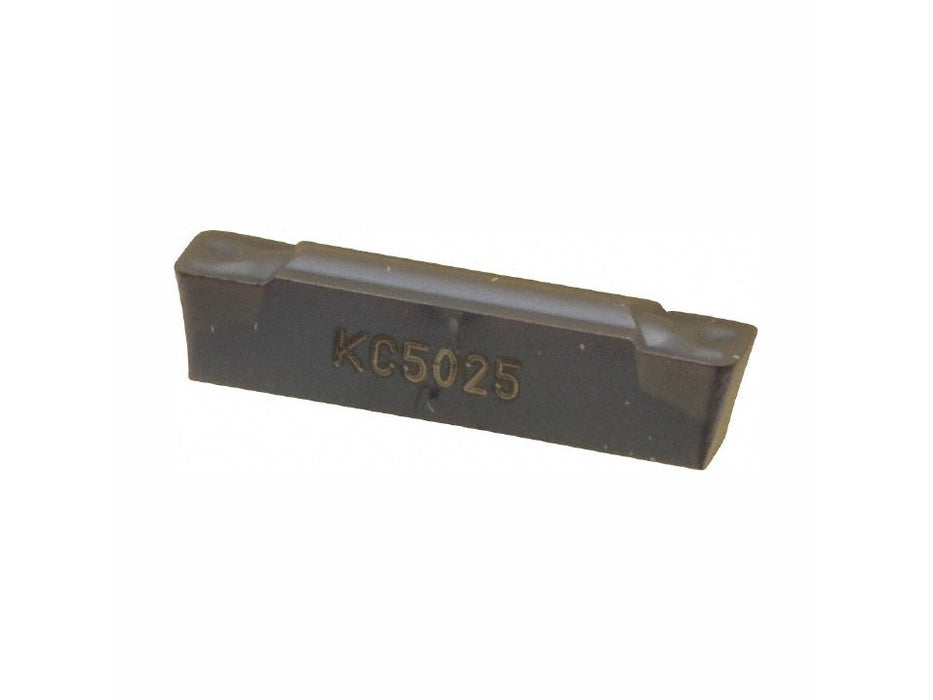

A4G0405M04U08GMN KC5025 Carbide Grooving Inserts (10 PCS) 1952737
Description
Kennametal
A4G0405M04U08GMN KC5025 Carbide Grooving Inserts (10 PCS) 1952737, TiAlN Finish, Neutral, 4.05 mm Cutting Width, 3.50 mm Max Depth, Series A4
Specs
Cutting Width (Decimal Inch): 0.1594
Cutting Width (mm): 4.05
Insert Hand: Neutral
Maximum Depth of Cut (Decimal Inch): 0.1378
Maximum Depth of Cut (mm): 3.50
Insert Material: Carbide
Manufacturer Grade: KC5025
Full Radius: No
Corner Radius (Decimal Inch): 0.0315
Corner Radius (mm): 0.80
Measurement Type: Metric
Insert Size: 405
Material Grade: C6; C2
Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500
Maximum Depth Of Cut Range (mm): 3.00 to 4.00
Multi-use Tool: Yes
Series: A4
Coating Process: PVD
Overall Length (Decimal Inch): 0.7874
Manufacturers Catalog Number: A4G0405M04U08GMN
UNSPSC Code: 23242105
Chip Breaker: GMN
Insert Seat Size: 4
Coating/Finish: TiAlN
Country of Origin: Germany
MPN: 1952737
PKG QTY: 10 PCS
Location: SUR-STC-053
