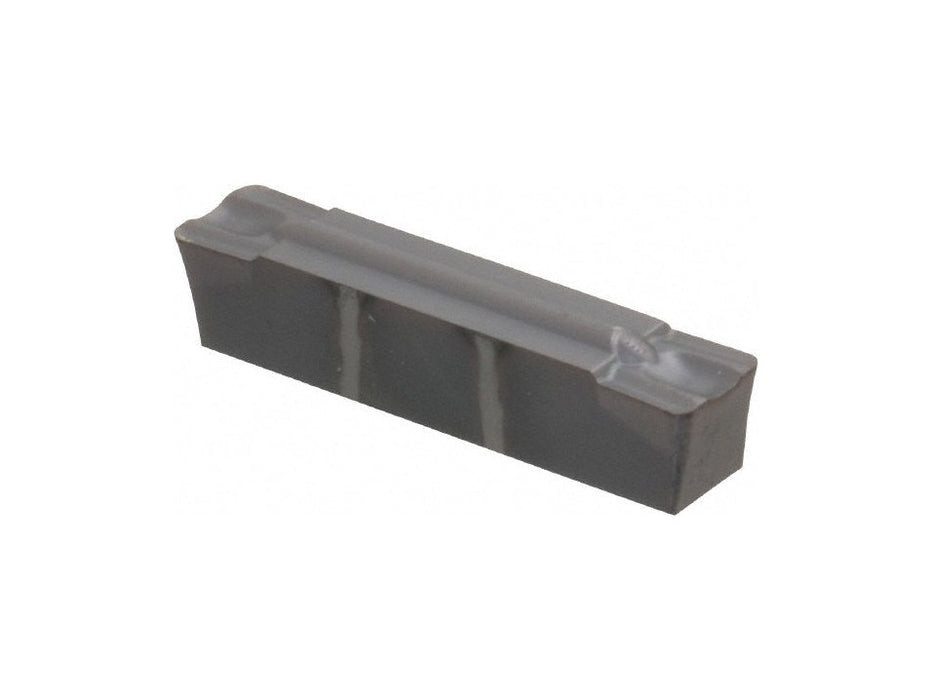

A4G0505M05U08GMP KC5025 Carbide Grooving Inserts (10 PCS) 1923839

Kennametal
A4G0505M05U08GMPKC5025 Carbide Grooving Inserts (10 PCS) 1923839,
TiAlN Finish, Neutral, 5.05 mm Cutting Width, 4.20 mm Max Depth, Series A4

Specs
Insert Style: G
Cutting Width (Decimal Inch): 0.1988
Cutting Width (mm): 5.05
Insert Hand: Neutral
Maximum Depth of Cut (Decimal Inch): 0.1654
Maximum Depth of Cut (mm): 4.20
Insert Material: Carbide
Manufacturer Grade: KC5025
Full Radius: No
Corner Radius (Decimal Inch): 0.0315
Corner Radius (mm): 0.80
Rake: Positive
Measurement Type: Metric
Insert Size: 0505M0
Material Grade: C6; C2
Maximum Depth Of Cut Range (Decimal Inch): 0.1500 to 0.2000
Maximum Depth Of Cut Range (mm): 4.00 to 5.00
Multi-use Tool: Yes
Series: A4
Coating Process: PVD
Overall Length (Decimal Inch): 0.9843
Manufacturers Catalog Number: A4G0505M05U08GMP
UNSPSC Code: 23242105
Chip Breaker: GMP
Coating/Finish: TiAlN
Country of Origin: Germany

MPN: 1923839
PKG QTY: 10 PCS

Location: SUR-STC-058
