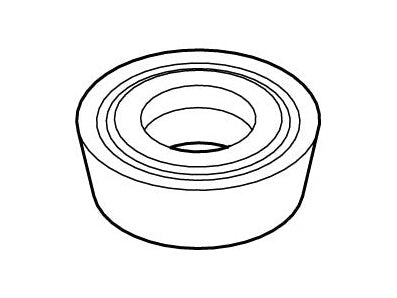

RDHX 1604M0FLP KC725M Carbide Milling Inserts (15 PCS) Kennametal 1888578

Kennametal
RDHX 1604M0FLP KC725M Carbide Milling Inserts (15 PCS) 1888578

Specs
Insert Style: RDHX
Insert Size: 16
Insert Material: Solid Carbide
Insert Shape: Round
Manufacturer Grade: KC725M
Number Of Cutting Edges: 4
Thickness (Decimal Inch - 4 Decimals): 0.1875
Coating/Finish: TiAlN
Relief Angle: 15.00
Insert Size Code: 1604
Material Grade: C5; C6; C7
Thickness (Inch): 3/16
Inscribed Circle (Decimal Inch): 0.6299
Inscribed Circle (mm): 16.00
Thickness Range (Decimal Inch): 0.1850 to 0.2000
Inscribed Circle Range (Decimal Inch): 0.6000 to 0.7000
Length Range (Decimal Inch): 0.6000 to 0.6500
Insert Hand: Neutral
Series: RDHX
Coating Process: PVD
Hole Diameter (Mm) ( - 0 Decimals): 0.20
Hole Diameter (Decimal Inch): 0.2047
Rake: Positive
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; M
Ansi Code: RDHX1604M0FLP
Iso Code: RDHX1604M0FLP
Standards: ISO; ANSI
Cutting Edge Style: Sharp
Manufacturers Catalog Number: RDHX1604M0FLP
Cutter Series Compatibility: KDM-16
Chip Breaker: LP
UNSPSC Code: 23291601
Material Application: Stainless Steel; Superalloys & Titanium; Steel
Insert Holding Method: Screw
Coating Classification: PVD
Single or Double Sided Insert: Single
Included Angle Degree: 360
Width (Decimal Inch - 4 Decimals): 0.6299
Multi-Use Tool: Yes
Length (Decimal Inch - 4 Decimals): 0.6299
Country of Origin: Germany

MPN: 1888578
PKG QTY: 15 PCS

Location: SUR-RMC-BX2
