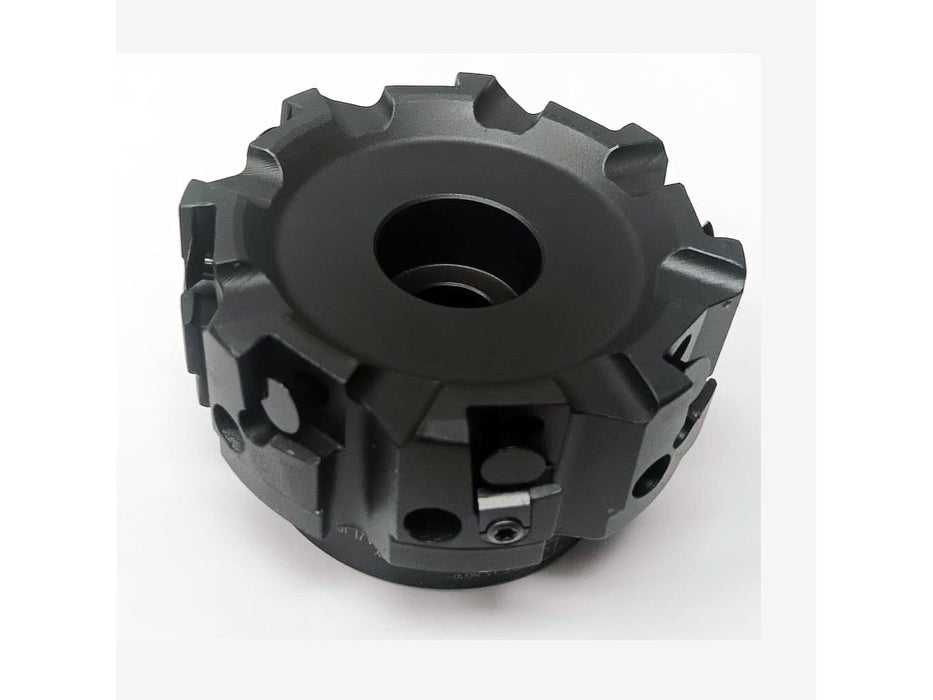

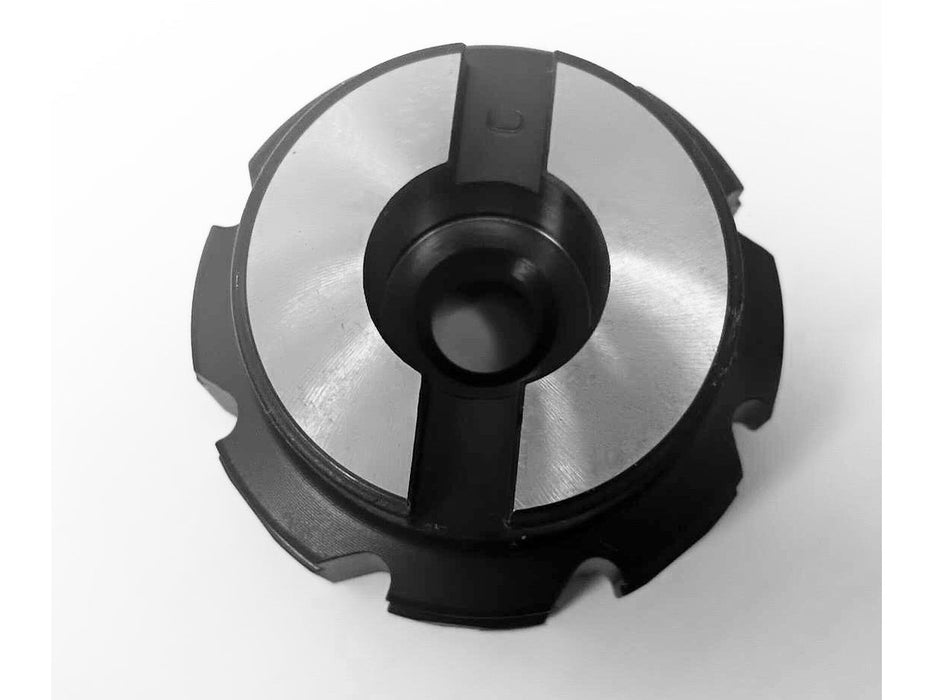

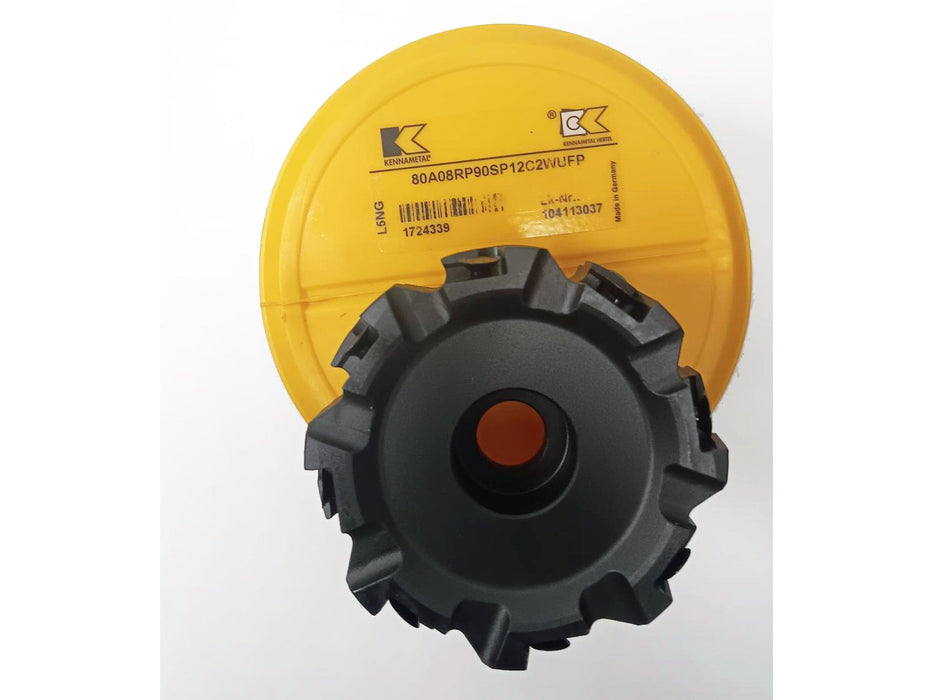

Kennametal 3.0" Indexable Square-Shoulder Face Mill 80A08RP90SP12C2WUFP, 1724339
Description
Kennametal
3" Indexable Square-Shoulder Face Mill 80A08RP90SP12C2WUFP, 1724339
Description
3'Cut Dia, 1.0000" Arbor Hole Dia, 0.2360" Max Cutting Depth
Uses 8 SPHX 1205... Inserts, No, Series Fix-Perfect
Specs
Maximum Cutting Diameter (Inch): 3
Maximum Cutting Diameter (Decimal Inch): 3.0000
Maximum Depth of Cut (Decimal Inch): 0.2360
Arbor Hole Diameter (mm): 25.40
Arbor Hole Diameter (Inch): 1
Arbor Hole Diameter (Decimal Inch): 1.0000
Compatible Insert Size Code: SPHX 1205... (Not Included, Sold Seperately)
Number Of Cutter Inserts: 8
Number Of Flutes: 8
Cutting Direction: Right Hand
Insert Holding Method: Clamp
Lead Angle: 0/90
Series: Fix-Perfect
Maximum Body Diameter (Decimal Inch): 2.9060
Overall Height (Inch): 1-3/4
Overall Height (Decimal Inch): 1.7500
Keyway Width (Decimal Inch): 0.3900
Hub Diameter (mm): 2.19
Hub Diameter (Decimal Inch): 2.1900
Pitch Type: Fine
Number of Adjustable Pockets: 2
UNSPSC Code: 27112803
Coolant Through: No
MPN: 1724339
PKG QTY: 1 PC
Location: SUR-STC-027
