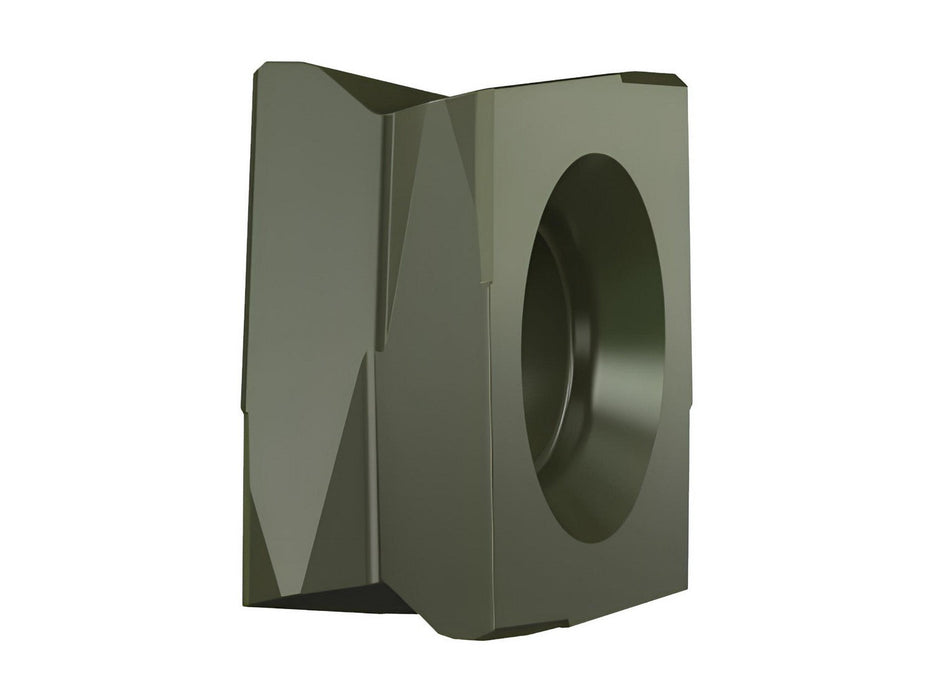

Kennametal SPHX 1205PCTRGPBK KY3500 Ceramic Inserts (10 PCS) 1505370

Kennametal
SPHX 1205PCTRGPBK KY3500 Ceramic Milling Inserts (10 PCS) 1505370

Specs
Insert Style: SPHX
Insert Size: 12
Insert Material: Ceramic
Insert Shape: Square
Manufacturer Grade: KY3500
Number Of Cutting Edges: 8
Thickness (Decimal Inch - 4 Decimals): 0.2170
Coating/Finish: Uncoated
Relief Angle: 11.00
Insert Size Code: 1205
Material Grade: Micrograin
Inscribed Circle (Decimal Inch): 0.2165
Inscribed Circle (mm): 12.00
Thickness Range (Decimal Inch): 0.2000 to 0.2200
Inscribed Circle Range (Decimal Inch): 0.0000 to 0.2500
Length Range (Decimal Inch): 0.0000 to 0.3200
Insert Hand: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.4331
Series: SPHX
Coating Process: Uncoated
Hole Diameter (Mm) ( - 0 Decimals): 0.20
Hole Diameter (Decimal Inch): 0.1969
Rake: Positive
Primary Workpiece Material: Cast Iron
Primary Workpiece Material Code: K
Ansi Code: SPHX1205PCTRGPBK
Iso Code: SPHX1205PCTRGPBK
Standards: ISO; ANSI
Rake Angle: 5
Cutting Edge Style: T-Land
Manufacturers Catalog Number: SPHX1205PCTRGPBK
Cutter Series Compatibility: Fix-Perfect
Chip Breaker: GP
UNSPSC Code: 23291601
Material Application: Cast Iron
Insert Holding Method: Screw
Coating Classification: Uncoated
Single or Double Sided Insert: Double
Included Angle Degree: 90
Multi-Use Tool: Yes
Length (Decimal Inch - 4 Decimals): 0.2587
Country of Origin: Germany

MPN: 1505370
PKG QTY: 10 PCS

Location: SUR-STC-535
