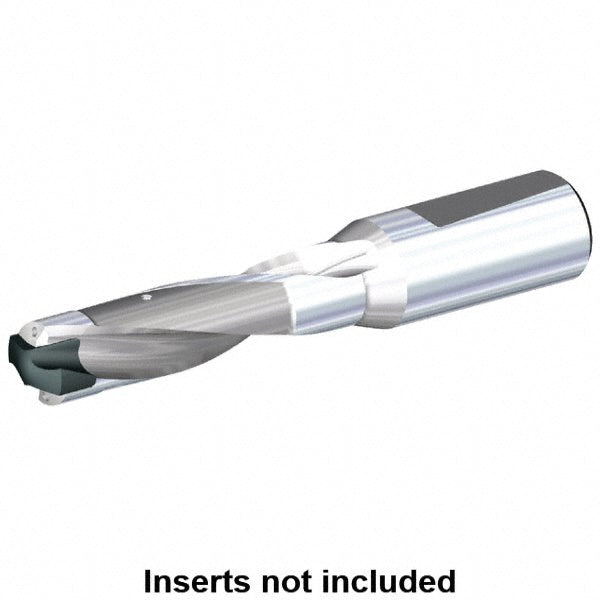

Kennametal KSEM1600 Replaceable-Tip Drill: 16 to 16.5 mm Dia, 1245980

Kennametal
Replaceable-Tip Drill: 16 to 16.5 mm Dia, 48 mm Max Depth, 20 mm Whistle Notch Shank
Uses KSEM1600 Inserts, Seat Size 1, 122 mm OAL, Through Coolant
Note: Inserts not included

Specs
Minimum Drill Diameter (Decimal Inch): 0.6299
Minimum Drill Diameter (mm): 16.00
Maximum Drill Diameter (mm): 16.50
Maximum Drill Diameter (Decimal Inch): 0.6496
Drill Depth by Diameter Ratio: 3xD
Maximum Drill Depth (mm): 48.00
Shank Type: Whistle Notch
Shank Diameter (Decimal Inch): 0.7874
Insert Seat Size: 1
Shank Diameter (mm): 20.00
Maximum Drill Depth Range (mm): 40.00 to 60.00
Compatible Insert Style: KSEM1600
Overall Length (mm): 122
Series: KSEM
Flute Length (mm): 67.00
Flute Length (Decimal Inch): 2.6378
Shank Length (mm): 50.00
Coolant Hole Diameter (Decimal Inch): 0.1378
Coolant Hole Diameter (mm): 3.50
Coolant Through: Yes
UNSPSC Code: 23291502
Country of Origin: Germany

MPN: 1245980
PKG QTY: 1 PC
