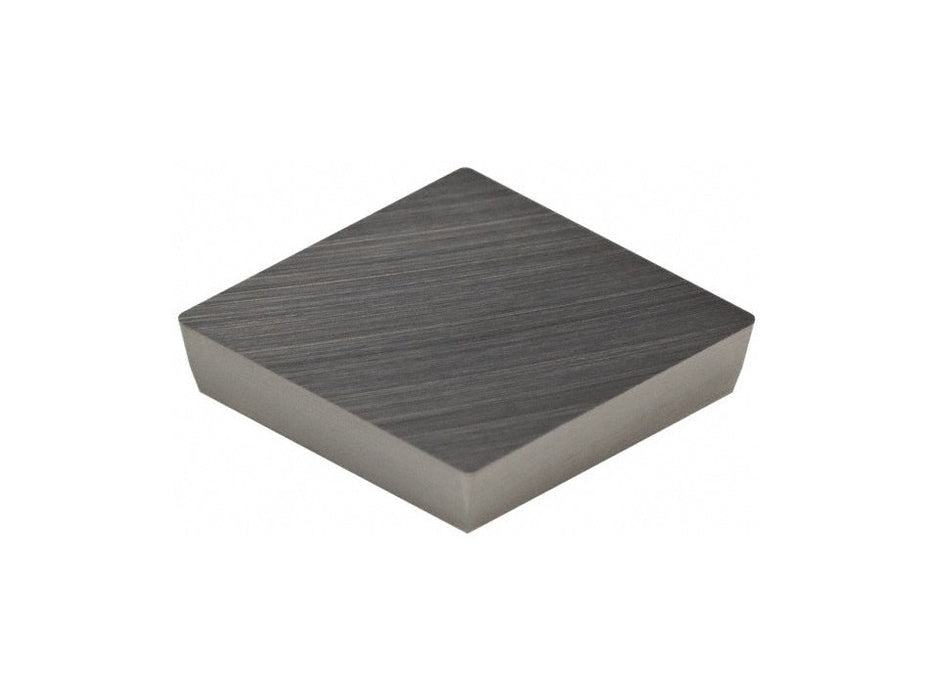

CPG 421 K68 Carbide Turning Inserts (10 PCS) Kennametal 1183457

Kennametal
CPG 421 K68 Carbide Turning Inserts (10 PCS) Kennametal 1183457, Bright/No Finish, Neutral, 12.90 mm Long, 80 deg C - Diamond (Rhombic) 80-Deg, Series KENDEX

Specs
Insert Style: CPG
ISO Size Code: 120304
ANSI Size Code: 421
Insert Shape: C - Diamond (Rhombic) 80-Deg
Included Angle: 80
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: K68
Coating/Finish: Bright/Uncoated
Relief Angle: 11
Wiper Edge: No
Insert Thickness (Decimal Inch): 0.1250
Insert Thickness (Inch): 1/8
Insert Hand: Neutral
Series: KENDEX
Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Chip Breaker Operation: Flat Top
Number Of Cutting Edges: 2
Side Clearance: Positive
Insert Shape Code: C
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ISO Insert Code: CPG120304
ANSI Insert Code: CPG421
Insert Holding Method: Clamp
Width (Inch): 1/2
Clearance Code: P
Tolerance Code: G
Coating Process: Uncoated
Length Range (Decimal Inch): 0.5000 - 0.6000
Rake: Positive
Insert Length (Decimal Inch): 0.5077
Insert Length (mm): 12.90
Primary Workpiece Material: Non-Ferrous Metal; Superalloys & Titanium
Primary Workpiece Material Code: P; S; K; M; N
Standards: ISO; ANSI
Manufacturers Catalog Number: 1183457
Material Grade: C3
Proprietary Coating Designation: Uncoated
Coating Classification: Uncoated
Chip Breaker: Flat Top
Rake Angle: 0
Cutting Edge Style: Honed
Industry Standard Number: CPG421
Width (Decimal Inch - 4 Decimals): 0.5000
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
UNSPSC Code: 23242105
Insert Size Code: 421
Country of Origin: UNITED STATES

MPN: 1183457
PKG QTY: 10 PCS
