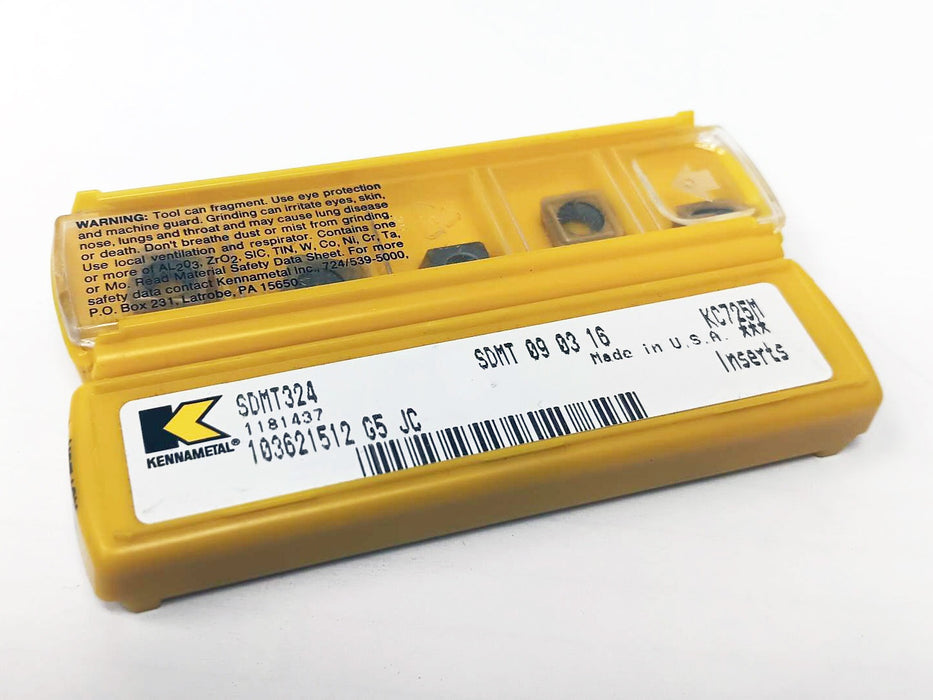

Kennametal SDMT 324 KC725M Carbide Inserts (10 PCS) 1181437

Kennametal
Milling Insert: ANSI SDMT324, ISO SDMT090316, KC725M, Solid Carbide, TiAlN Finish, 0.1252" Thick, 0.3750" Wide, 1181437

Specs
Insert Style: SDMT
Insert Size: 3
Insert Material: Solid Carbide
Insert Shape: Square
Manufacturer Grade: KC725M
orner Radius (Decimal Inch): 0.0630
Corner Radius (mm): 1.60
Number Of Cutting Edges: 4
Thickness (Decimal Inch - 4 Decimals): 0.1252
Coating/Finish: TiAlN
Relief Angle: 15.00
Insert Size Code: 324
Material Grade: C5; C6; C7
Width (Inch): 3/8
Length (Inch): 3/8
Thickness (Inch): 1/8
Inscribed Circle (Inch): 3/8
Inscribed Circle (Decimal Inch): 0.3750
Thickness Range (Decimal Inch): 0.1250 to 0.1500
Corner Radius (Inch): 1/16
Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000
Length Range (Decimal Inch): 0.3200 to 0.4000
Insert Hand: Neutral
Series: SDMT
Coating Process: PVD
Hole Diameter (Mm) ( - 0 Decimals): 0.17
Hole Diameter (Decimal Inch): 0.1732
Rake: Positive
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; S; M
Ansi Code: SDMT324
Iso Code: SDMT090316
Standards: ISO; ANSI
Cutting Edge Style: Honed
Manufacturers Catalog Number: SDMT090316
Cutter Series Compatibility: SD09
Material Application: Stainless Steel; Superalloys & Titanium; Steel
Insert Holding Method: Screw
Coating Classification: PVD
Single or Double Sided Insert: Single
Included Angle Degree: 90
Width (Decimal Inch - 4 Decimals): 0.3750
Multi-Use Tool: Yes
Length (Decimal Inch - 4 Decimals): 0.3750
Country of Origin: UNITED STATES

MPN: 1181437
PKG QTY: 10 PCS
