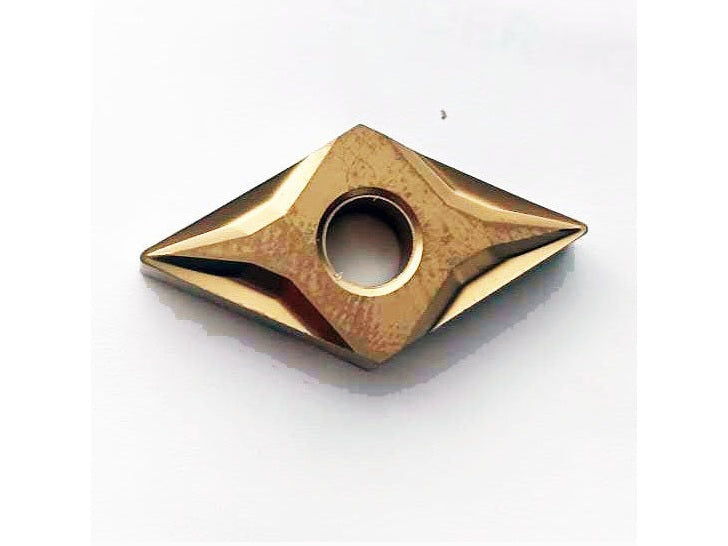

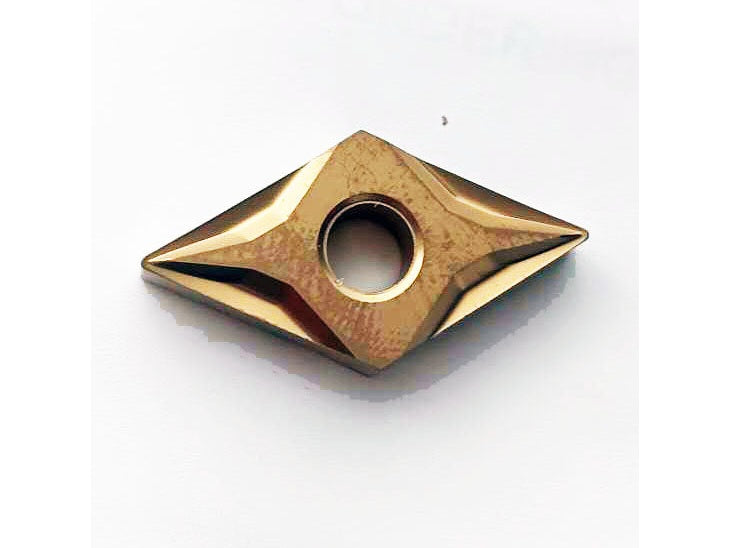

DNMP 431K KC810 Kennametal Carbide Turning Inserts (5 PCS) 1161224

Kennametal
DNMP 431K KC8105 Carbide Turning Inserts (5 PACK) 1161224

Specs
Insert Style: DNMP
ISO Size Code: 150404K
ANSI Size Code: 431K
Insert Shape: D - Diamond (Rhombic) 55-Deg
Included Angle: 55
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: KC810
Relief Angle: 0
Wiper Edge: No
Insert Thickness (Decimal Inch): 0.1875
Insert Thickness (Inch): 3/16
Insert Hand: Neutral
Series: KENLOC
Chip Breaker Operation: Medium Machining
Number Of Cutting Edges: 4
Side Clearance: Negative
Insert Shape Code: D
Hole Diameter (Decimal Inch): 0.2031
Hole Diameter (Mm) ( - 0 Decimals): 5.16
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ISO Insert Code: DNMP150404
ANSI Insert Code: DNMP431
Insert Holding Method: Pin; Clamp
Coating Process: MTCVD
Length Range (Decimal Inch): 0.7000 - 10.0000
Rake: Negative
Insert Length (Decimal Inch): 1.1920
Insert Length (mm): 15.50
Country of Origin: UNITED STATES

MPN: 1161224
PKG QTY: 5 PCS
