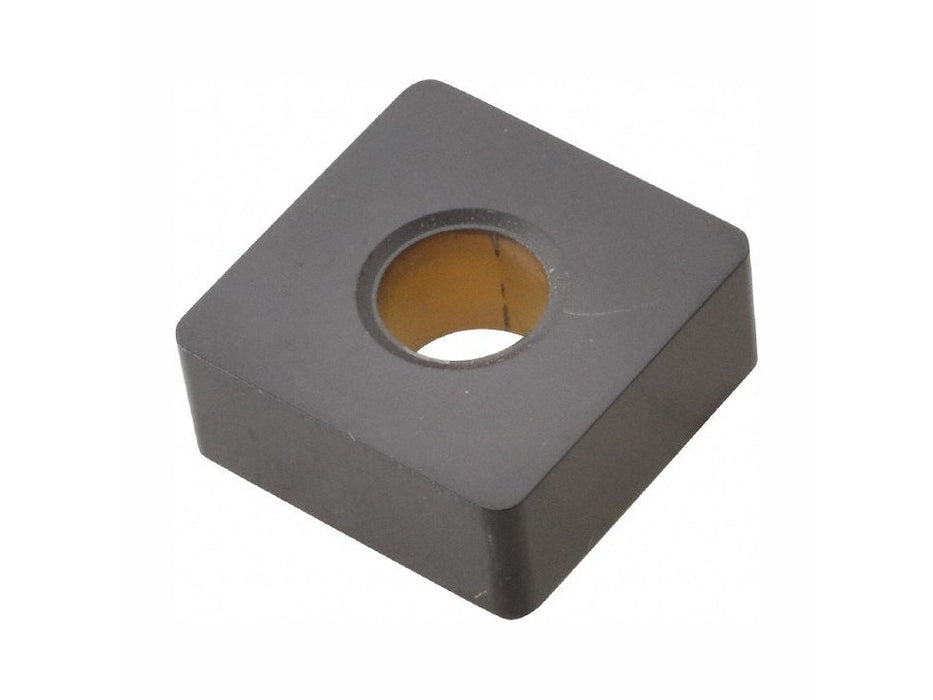

SNMA 543 KC910 Carbide Inserts (10 PCS) Kennametal 1160423

Kennametal
SNMA 543 KC910 Carbide Inserts (10 PCS) 1160423

Specs
Insert Style: SNMA
ISO Size Code: 150612
ANSI Size Code: 543
Insert Shape: S - Square
Included Angle: 90
Inscribed Circle (Decimal Inch): 0.6250
Inscribed Circle (Inch): 5/8
Corner Radius (Inch): 3/64
Corner Radius (Decimal Inch): 0.0469
Insert Material: Carbide
Manufacturer Grade: KC910
Insert Thickness (Decimal Inch): 0.2500
Insert Thickness (Inch): 1/4
Insert Hand: Neutral
Series: KENLOC
Number Of Cutting Edges: 8
Side Clearance: Negative
Hole Diameter (Decimal Inch): 0.2500
Hole Diameter (Mm) ( - 0 Decimals): 6.35
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0500
ISO Insert Code: SNMA150612
ANSI Insert Code: SNMA543
Insert Holding Method: Pin; Clamp
Width (Inch): 5/8
Length Range (Decimal Inch): 0.6000 - 0.6500
Rake: Negative
Insert Length (Decimal Inch): 0.6250
Insert Length (Inch): 5/8
Chip Breaker: Flat Top
Rake Angle: 0
Cutting Edge Style: Honed
Industry Standard Number: SNMA543
Width (Decimal Inch - 4 Decimals): 0.6250
Multi-Use Tool: Yes
Full Radius: No
Multi-Use Application: Facing; Turning; Boring
Insert Size Code: 543
Country of Origin: UNITED STATES

MPN: 1160423
PKG QTY: 10 PCS
