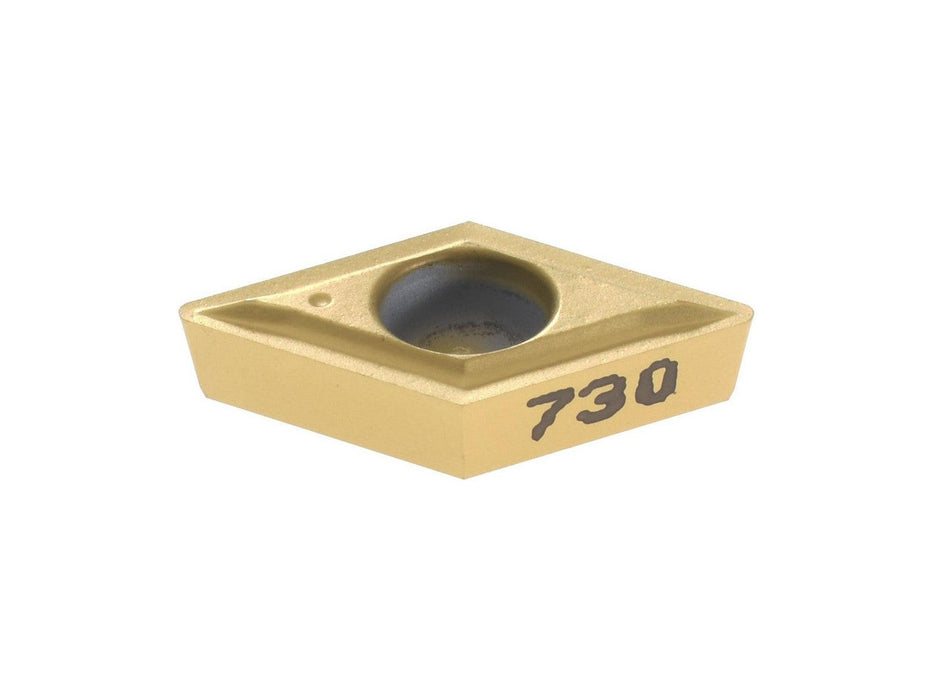

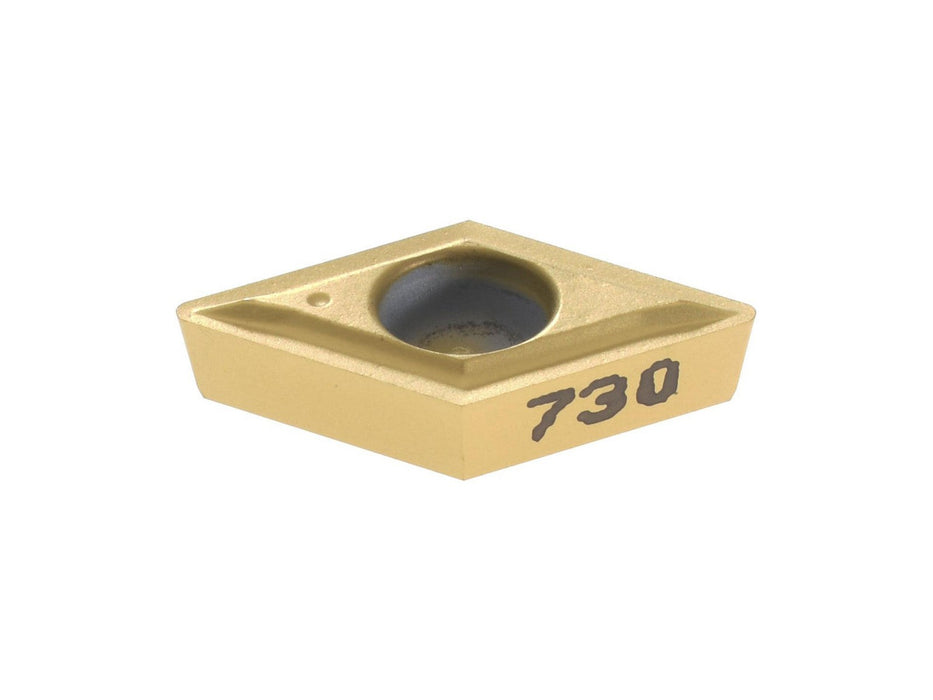

DPGT 21.51LF KC730, Carbide Turning Inserts (10 PCS) Kennametal 1120174

Kennametal
DPGT 21.51LF KC730, Carbide Turning Inserts (10 PCS) 1120174

Specs
Insert Style: DPGT
ISO Size Code: 070204
ANSI Size Code: 21.51
Insert Shape: D - Diamond (Rhombic) 55-Deg
Included Angle: 55.00
Inscribed Circle (Decimal Inch): 0.2500
Inscribed Circle (Inch): 1/4
Corner Radius (Inch): 1/64
Corner Radius (Decimal Inch): 0.0156
Insert Material: Carbide
Manufacturer Grade: KC730
Coating/Finish: TiN
Relief Angle: 11.000
Wiper Edge: No
Insert Thickness (Decimal Inch): 0.0938
Insert Thickness (Inch): 3/32
Insert Hand: Neutral
Series: Screw-On
Chip Breaker Operation: Light Machining; Finishing
Number Of Cutting Edges: 2
Side Clearance: Positive
Insert Shape Code: D
Hole Diameter (Decimal Inch): 0.1102
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ISO Insert Code: DPGT070204
ANSI Insert Code: DPGT21.51
Insert Holding Method: Screw
Width (Inch): 1/4
Clearance Code: P
Tolerance Code: G
Coating Process: PVD
Length Range (Decimal Inch): 0.6000 - 0.6500
Rake: Positive
Insert Length (Decimal Inch): 0.6104
Insert Length (mm): 7.75
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; K; M
Secondary Workpiece Material Code: S; M
Manufacturers Catalog Number: 1120174
Material Grade: C3; C4; C2
Proprietary Coating Designation: TiN
Coating Classification: PVD
Chip Breaker: LF
Rake Angle: 5
Cutting Edge Style: Honed
Industry Standard Number: DPGT2151LF
Width (Decimal Inch - 4 Decimals): 0.2500
UNSPSC Code: 23242105
Insert Size Code: 2151
Country of Origin: UNITED STATES

MPN: 1120174
PKG QTY: 10 PCS
