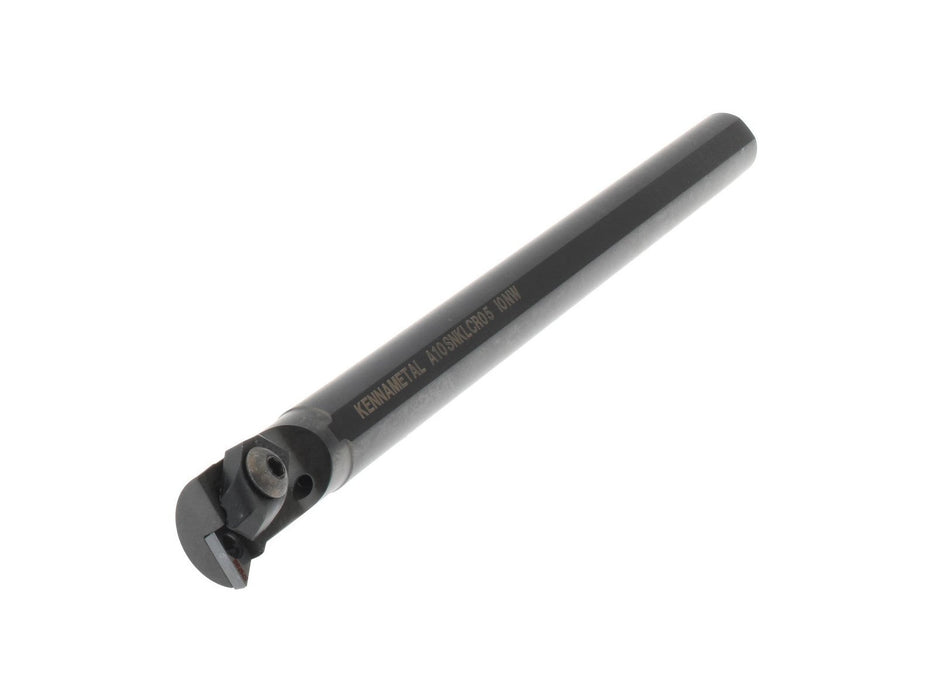

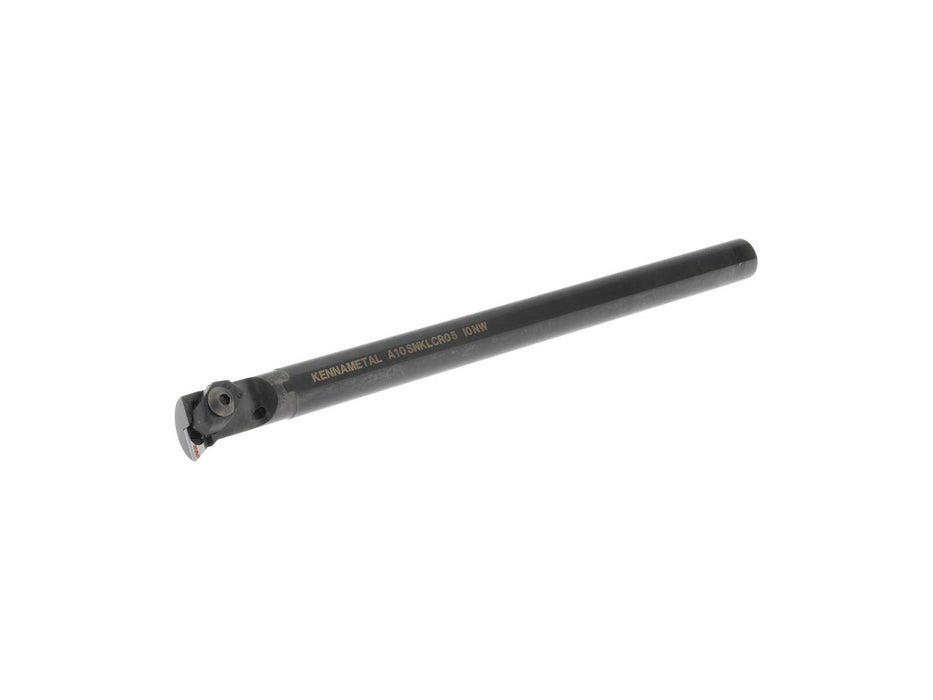

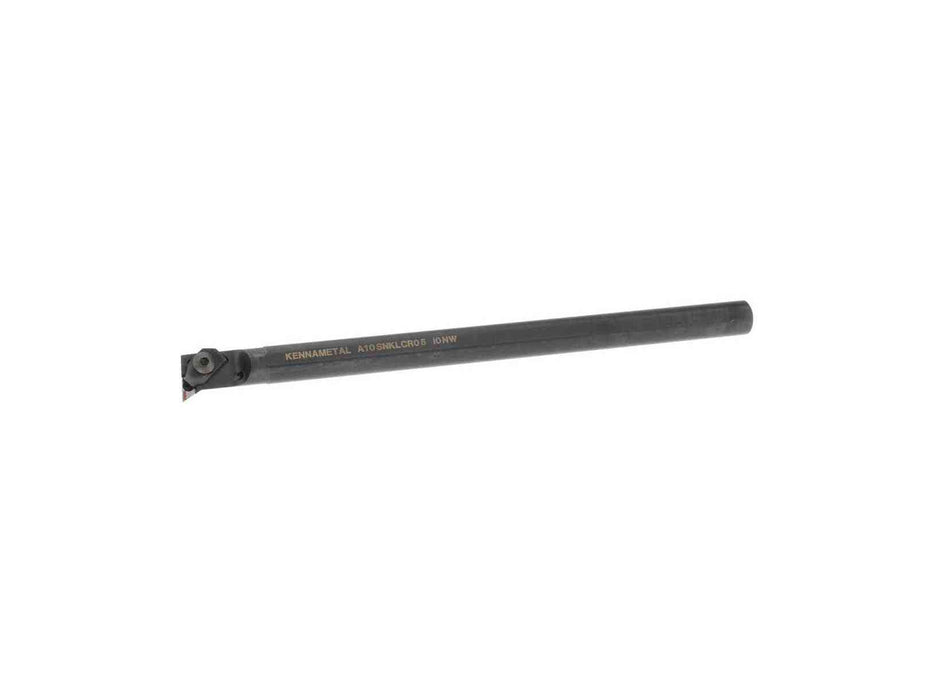

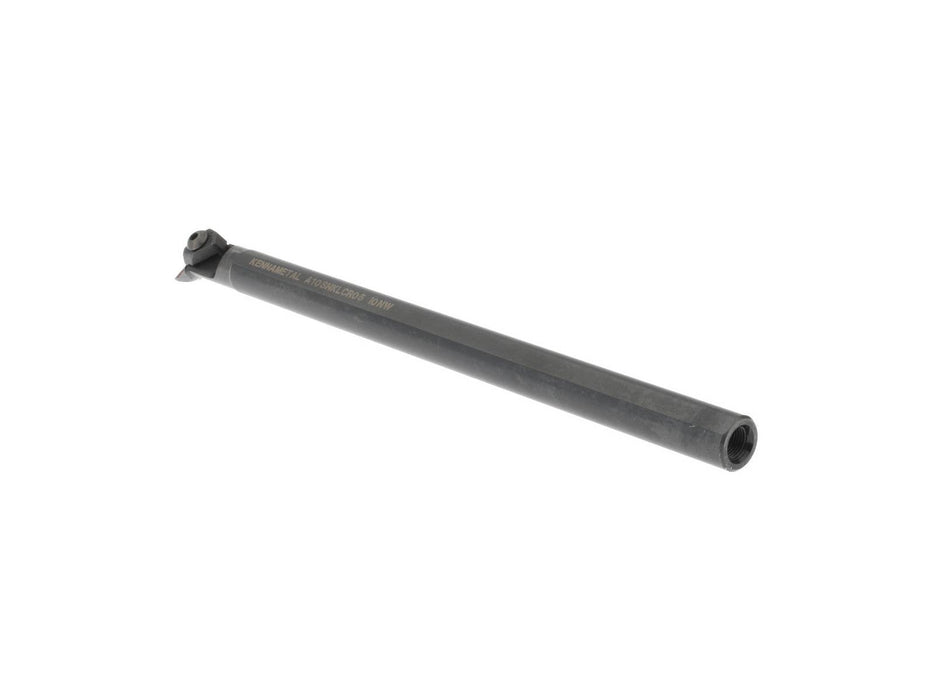

Kennametal A10-NKLCR05 NB5 Indexable Profiling Toolholder External, 1095901

Kennametal
A10-NKLCR05 NB5 Indexable Profiling Toolholder: External, 5-Degree Lead Angle,
5/8" Shank, 10" OAL, Uses NP.., Series Top Notch, 1095901

Specifications
Internal or External: External
Hand of Holder: Right Hand
Compatible Insert Size Code: NP..
Toolholder Style: A-NKLC
Rake: Neutral
Insert Holding Method: Clamp
Toolholder Material: Steel
Shank Width/Diameter (Decimal Inch): 0.6250
Overall Length (mm): 254.00
Shank Width/Diameter (mm): 15.88
Overall Length (Decimal Inch): 10.0000
Shank Width/Diameter (Inch): 5/8
Series: Top Notch
Rake Angle: 0
Lead Angle: 5
Center to Cutting Edge (Decimal Inch): 0.5000
Center to Cutting Edge (mm): 12.70
Minimum Hole Diameter (mm): 22.86
Minimum Hole Diameter (Decimal Inch): 0.9000
Coolant Hole Thread Size (Inch): 1/8-27 NPT
UNSPSC Code: 23153308
Complete Insert Compatibility: NP.. 51L
MSC/Manufacturer Number: A10NKLCR/L05
Coolant Through: Yes
Country of Origin: UNITED STATES

MPN: 1095901
PKG QTY: 1 PC

Location: SUR-STC-031
