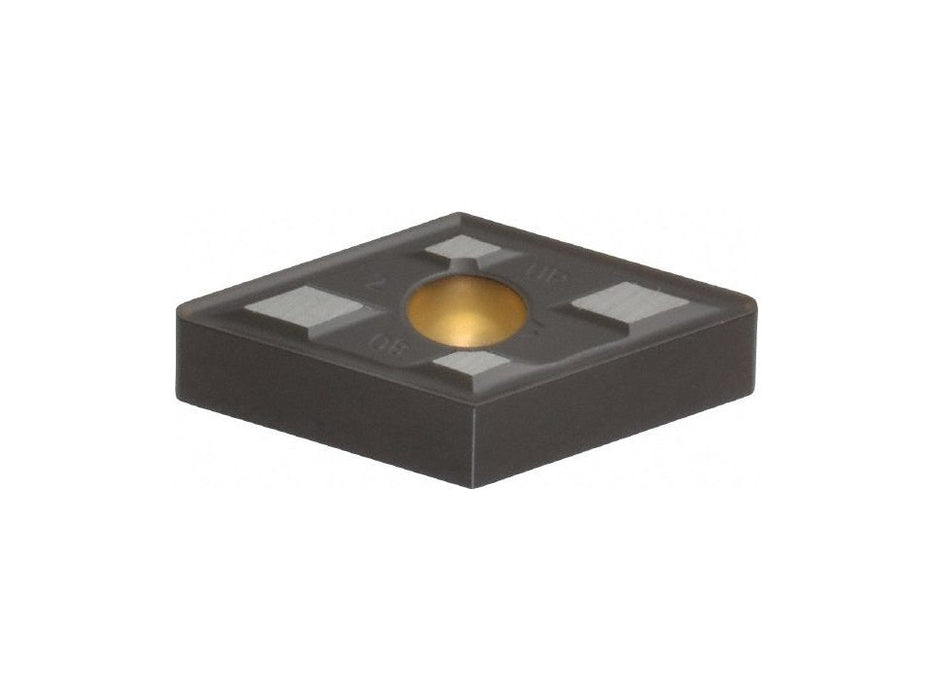

DNMG 432UP KCM15 Carbide Inserts (10 PCS) Kennametal 3758065

Kennametal
DNMG 432UP KCM15 Carbide Inserts (10 PCS) 3758065, TiCN & Al2O3 Finish, Neutral, 15.50 mm Long, 55 deg D - Diamond (Rhombic) 55-Deg, Series KENLOC

Specs
Insert Style: DNMG
ISO Size Code: 150408
ANSI Size Code: 432
Insert Shape: D - Diamond (Rhombic) 55-Deg
Included Angle: 55
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0313    I
nsert Material: Carbide
Manufacturer Grade: KCM15
Coating/Finish: TiCN; Al2O3
Relief Angle: 0    Wiper Edge: No
Insert Thickness (Decimal Inch): 0.1875
Insert Thickness (Inch): 3/16
Insert Hand: Neutral
Series: KENLOC
Grade Characteristics: Steel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness    Chip Breaker Operation: Medium Machining; Roughing
Number Of Cutting Edges: 4
Side Clearance: Negative
Insert Shape Code: D
Hole Diameter (Decimal Inch): 0.2031
Hole Diameter (Mm) ( - 0 Decimals): 5.16
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
ISO Insert Code: DNMG150408
ANSI Insert Code: DNMG432
Insert Holding Method: Pin; Clamp
Width (Inch): 1/2
Clearance Code: N
Tolerance Code: M
Coating Process: MTCVD
Length Range (Decimal Inch): 0.7000 - 10.0000
Rake: Negative
Insert Length (Decimal Inch): 1.2208
Insert Length (mm): 15.50
Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel
Primary Workpiece Material Code: P; M
Secondary Workpiece Material Code: S
Standards: ISO; ANSI
Manufacturers Catalog Number: 3758065
Material Grade: C3; C2
Proprietary Coating Designation: Multilayer Coating
Coating Classification: CVD
Chip Breaker: UP
Rake Angle: 15
Cutting Edge Style: Honed
Industry Standard Number: DNMG432UP
Width (Decimal Inch - 4 Decimals): 0.5000
Multi-Use Tool: Yes
Full Radius: No    Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring
UNSPSC Code: 23242105
Insert Size Code: 432
Country of Origin: UNITED STATES

MPN: 3758065
PKG QTY: 10 PCS
