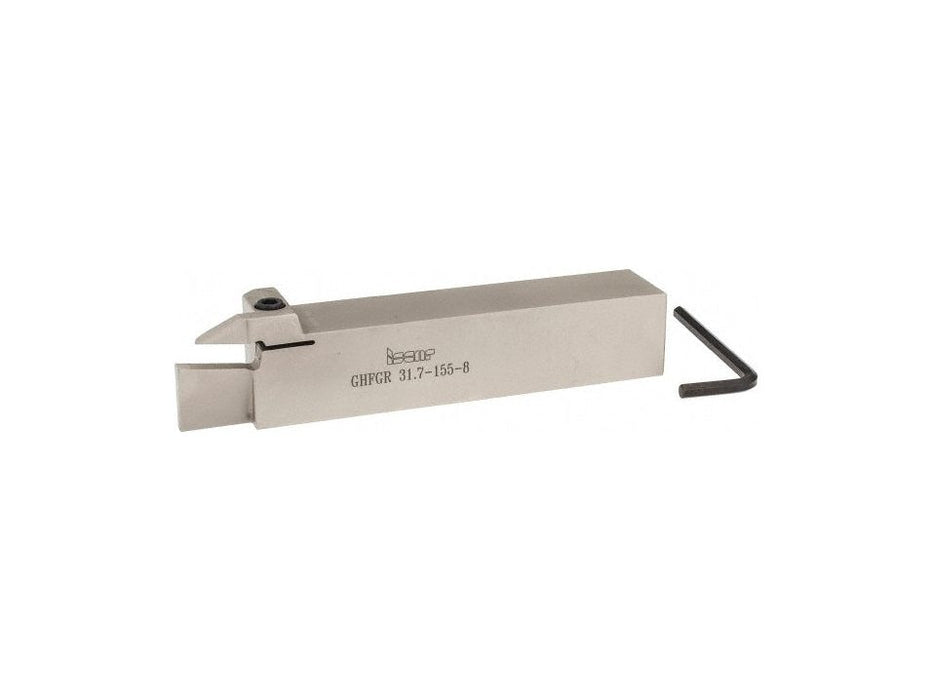

Iscar GHFGR 31.7-155-8 Indexable Grooving Toolholder, External, Right Hand, 2800223

Iscar
Indexable Grooving Toolholder: GHFGR31.7-155-8, External, Right Hand, 20.1" Max Workpiece Dia, 0.984" Max Depth of Cut, 1-1/4 x 1-1/4" Shank, Uses GDMF, GDMM-CC, GDMN, GDMU, GDMY, GDMY (Full Radius), GDMY-F, GIA-K (Long Pocket), GIF (Long Pocket), GIF-E (W=.315,.394 Full Radius), GIF-E (W=.315,.394), GIFG-E (W=.315), GIPA/GIDA 8 (Full Radius) Inserts (inserts not included)

Specs
Hand of Holder: Right Hand
Maximum Depth of Cut (Decimal Inch): 0.9840
Minimum Groove Width (Decimal Inch): 0.3150
Toolholder Style: GHFG
Maximum Groove Width (Decimal Inch): 0.3150
Insert Holding Method: Clamp
Insert Compatibility: GIFG; GIPA; GIF; GDMY; GDMM
Compatible Insert Size Code: GIF-E (W=.315,.394); GIF-E (W=.315,.394 Full Radius); GDMU; GDMY; GDMY (Full Radius); GDMY-F; GIA-K (Long Pocket); GIF (Long Pocket); GDMM-CC; GIFG-E (W=.315); GDMF; GIPA/GIDA 8 (Full Radius); GDMN
Shank Height (Decimal Inch): 1.2500
Series: Cut Grip
Shank Length (Decimal Inch): 4.9900
Overall Length (Decimal Inch): 6.7
Multi-use Tool: No
Maximum Workpiece Diameter (Decimal Inch): 20.1000
Back of Bar to Cutting Edge (Decimal Inch): 1.1100
Head Length (Decimal Inch): 1.71
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N
UNSPSC Code: 23153308
Maximum Groove Outside Diameter (Decimal Inch): 20.1000
Minimum Axial Groove Inside Diameter (Decimal Inch): 6.1000
Coolant Through: No

MPN: 2800223
PKG QTY: 1 PCS
