Iscar HFHL 25.4-60-4T25 Indexable Grooving Toolholder, Left Hand, 2500206

Iscar
Indexable Grooving Toolholder: HFHL 25.4-60-4T25, External, Left Hand, 2.95" Max Workpiece Diameter, 0.98" Max Depth of Cut, 1 x 1" Shank, Uses HGPL 4 Inserts, MPN: 2500206

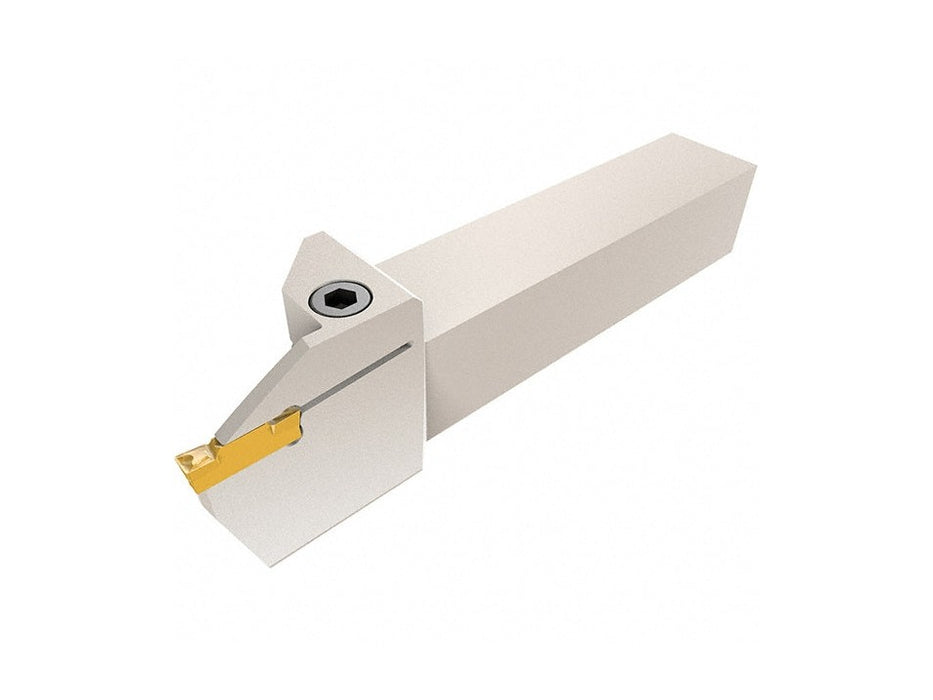

Note: Carbide Insert(s) not included, stock photo used in listing

Specs
Hand of Holder: Left Hand
Maximum Depth of Cut (Decimal Inch): 0.9800
Minimum Groove Width (Decimal Inch): 0.1570
Toolholder Style: HFH
Maximum Groove Width (Decimal Inch): 0.1570
Insert Holding Method: Clamp
Insert Compatibility: H.PL 40..    Inserts sold seperately
Compatible Insert Size Code: HGPL 4
Shank Height (Decimal Inch): 1.0000
Series: Heliface
Shank Length (Decimal Inch): 4.2700
Overall Length (Decimal Inch): 6
Multi-use Tool: Yes
Maximum Workpiece Diameter (Decimal Inch): 2.9500
Back of Bar to Cutting Edge (Decimal Inch): 1.0200
Head Height (Decimal Inch): 1.4700
Head Length (Decimal Inch): 1.73
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N
UNSPSC Code: 23153308
Maximum Groove Outside Diameter (Decimal Inch): 2.9600
Minimum Axial Groove Inside Diameter (Decimal Inch): 2.3600
Complete Insert Compatibility: HGPL 4020Y; HFPL 4004; HGPL 4004Y; HGPL 4002Y; HFPL 4020
Coolant Through: No

MPN: 2500206
PKG QTY: 1 PC

Location: NCT-CON-111
