Dorian 79458, CCGT-21.51-UEU-DUP25GT Carbide Inserts (10 PCS)
Description
Dorian Tool

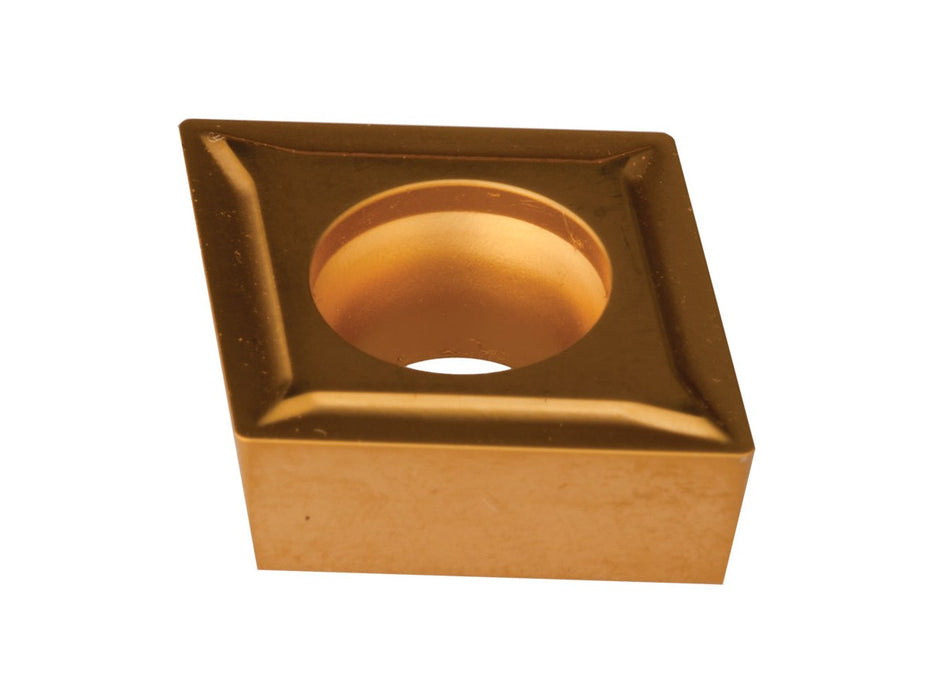

CCGT-21.51-UEU-DUP25GT Carbide Inserts
Technical Specs
Style: CCGT
Chipbreaker: UEU
Workpiece Material: High Temp and Super Alloys, Multi Materials
Corner Radius: .015 inches
Cutting Angle: 80 degree
Cutting Direction: Neutral
Cut Type: General
Diameter: 1/4 inches
Shape: 80-Degree Diamond
Thickness: 3/32 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DUP25GT
Finish / Coating: PVD Multi Layer Coating
Features
First Choice: For General Application of High Temp and Super Alloys, Multi Materials, with Small Depth of Cut and Low Feed per Revolution at Medium SFM (Vc), Light interrupted Cut, Wet Working Condition. UEU, Medium molded Chip Breaker and positive Rake Angle. Honed Cutting Edge, for precise chip control and free evacuation. For Universal Turning Application, of High Temp Super Alloys, Ferrous and non Ferrous Metals, at Small to medium Depth (ap) of Cut and Feed Rate per Revolution (fn).
Grade Description
The DUP25GT grade, has hard & impact resistant substrate with PVD TiAlN Coating, for General Turning Application of High Temp Super Alloys, Ferrous and non Ferrous Materials, at Medium SFM (Vc) for Light interrupted Cut. Wet or Dry Working Condition
MPN: 79458
PKG QTY: 10 PCS
