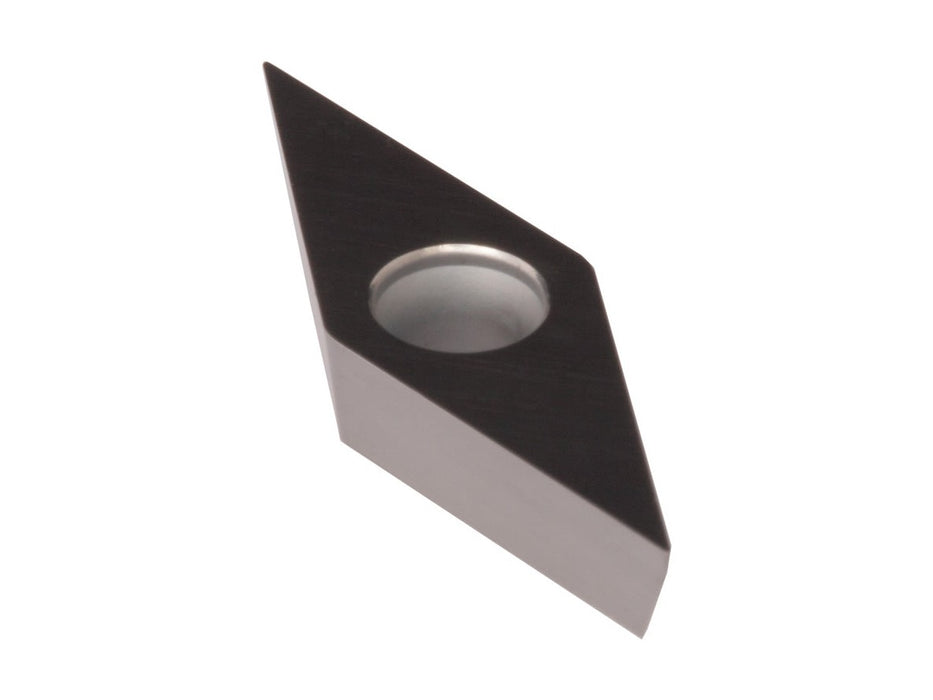

Dorian 79431, VBGW-331-KEU-DUP35RT Carbide Inserts (10 PCS)
Description
Dorian Tool
VBGW-331-KEU-DUP35RT Carbide Inserts
Technical Specs
Style: VBGW
Chipbreaker: KEU
Workpiece Material: High Temp and Super Alloys, Multi Materials
Corner Radius: .015 inches
Cutting Angle: 35 degree
Cutting Direction: Neutral
Cut Type: Universal
Diameter: 3/8 inches
Shape: 35-Degree Diamond
Thickness: 3/16 inches
Rake Type: Negative Rake Angle
Material: Carbide
Grade: DUP35RT
Finish / Coating: PVD Multi Layer Coating
Features
First Choice: For Universal Application of High Temp and Super Alloys, Multi Materials, with Medium Depth of Cut and Medium Feed per Revolution at Low SFM (Vc), For interrupted Cut, Wet/Dry Working Condition. KEU, Ground Surface, no Chip Breaker, Negative Rake Angle, and Honed Cutting Edge, For General Turning Application, of Cast Iron and Hardened Steel, at Medium Depth of Cut (ap) and Feed Rate per Revolution (fn).
Grade Description
The DUP35RT grade, has a wear & impact resistant substrate, with a Multi PVD TiAlN/WC/C coating, Low Cutting Speed for Unstable Turning Application of High Temp Super Alloys, Ferrous and non Ferrous Materials, at Medium to Low SFM (Vc) for interrupted Cut. Wet or Dry Working Condition
MPN: 79431
PKG QTY: 10 PCS
