Dorian 71707, TPGH-21.52-UEN-DPU25GT Carbide Inserts (10 PCS)
Description
Dorian Tool

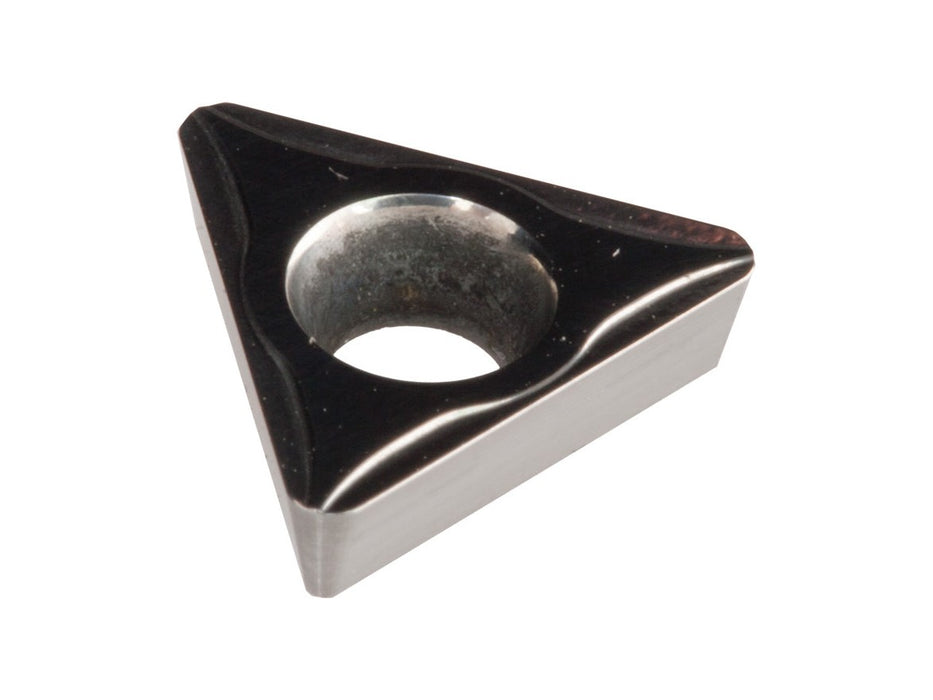

TPGH-21.52-UEN-DPU25GT Carbide Inserts
Technical Specs
Style: TPGH
Chipbreaker: UEN
Workpiece Material: Carbon & Alloy Steel, Stainless Steel, Cast Iron
Corner Radius: .031 inches
Cutting Angle: 60 degree
Cutting Direction: Neutral
Cut Type: General
Diameter: 1/4 inches
Shape: 60-Degree Triangle
Thickness: 3/32 inches
Rake Type: Negative Rake Angle
Material: Carbide
Grade: DPU25GT
Finish / Coating: Uncoated
Features
First Choice: For General Application of Carbon & Alloy Steel, Stainless Steel, with Small Depth of Cut and Low Feed per Revolution at Medium SFM (Vc), Light interrupted Cut, Wet Working Condition. UEN, Ground surface, no Chip Breaker, negative Rake Angle, honed Cutting Edge, For General Turning Application, of Ferrous and non Ferrous Materials, at Small Depth of Cut (ap) and Feed Rate per Revolution (fn).
Grade Description
The DPU25GT Uncoated grade, it is a hard and tough micro-grained substrate, with shock resistant cutting edge. For General Turning Application, of Carbon & Alloy Steel and Stainless Steel, at Medium SFM (Vc) for Light interrupted Cut. Wet Working Condition
MPN: 71707
PKG QTY: 10 PCS
