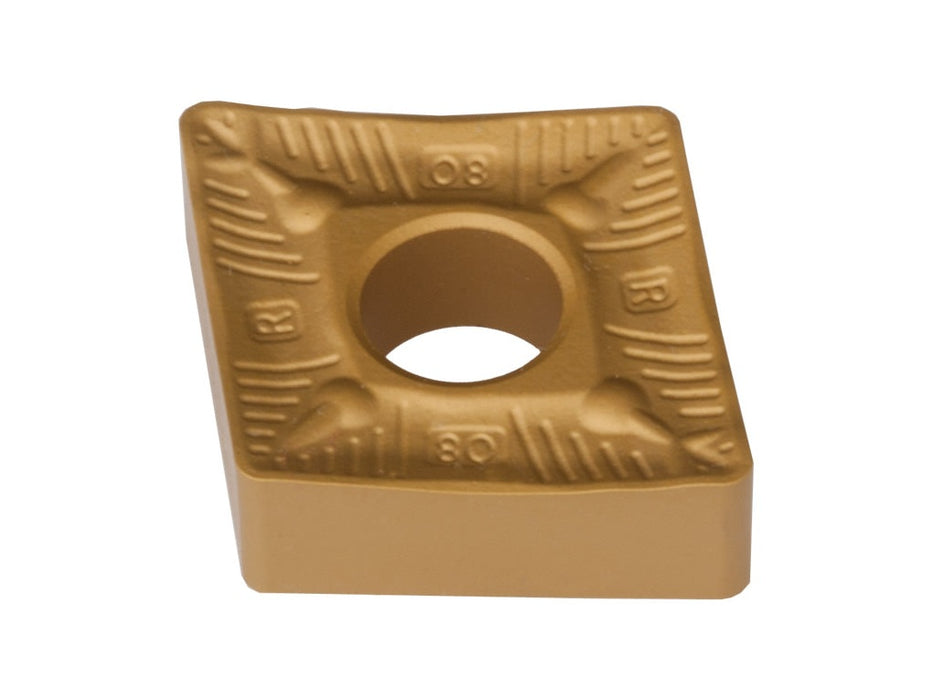

Dorian 70164, CNMM-433-PSH-DPC25UT Carbide Inserts (10 PCS)
Description
Dorian Tool
CNMM-433-PSH-DPC25UT Carbide Inserts
Technical Specs
Style: CNMM
Chipbreaker: PSH
Workpiece Material: Carbon & Alloy Steel, Stainless Steel
Corner Radius: .046 inches
Cutting Angle: 80 degree
Cutting Direction: Neutral
Cut Type: Heavy Roughing
Diameter: 1/2 inches
Shape: 80-Degree Diamond
Thickness: 3/16 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DPC25UT
Finish / Coating: CVD Multi Layer Coating
Features
First Choice: For Heavy Roughing Application of Carbon & Alloy Steel, Stainless Steel, with Large Depth of Cut and High Feed per Revolution at Medium SFM (Vc), Light interrupted Cut, Wet Working Condition. PSH, Single Sided Molded Chip Breaker. Strong and Large chip breaker geometry. Heavy Honed Cutting Edge, for a good chip control in variable cut and feed operations and interrupt cuts. For Heavy Roughing Turning Application, to machine Carbon & Alloy Steel, Stainless Steel and Cast Iron, at Large Depth of Cut (ap) and Feed Per Revolution (fn).
Grade Description
The DPC25UT grade, has a hard, tough, wear and abrasive Resistant Substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, (Al2O3/TiCN/Al2O3/TiCN). Medium Cutting Speed, for Universal Turning Application, from Finishing to Roughing. To cut Carbon Steel, Alloy Steel and Stainless Steel at Medium SFM (Vc) for Light interrupted Cut
MPN: 70164
PKG QTY: 10 PCS
