Dorian 69909, CNMG-434-KER-DKC15RT Carbide Inserts (10 PCS)

SKU 73310169909
Save 10% Save 10%
Original price $144.10
Original price $144.10 - Original price $144.10
Original price $144.10
Current price $129.50
$129.50 - $129.50
Current price $129.50
Description


Dorian Tool

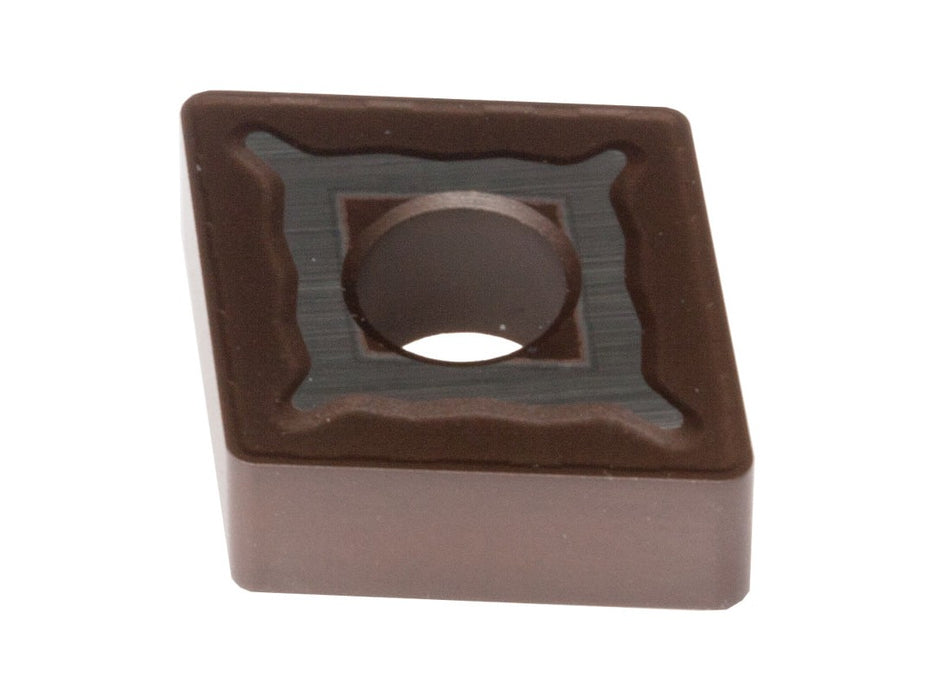

CNMG-434-KER-DKC15RT Carbide Inserts


Technical Specs
Style: CNMG
Chipbreaker: KER
Workpiece Material: Cast Iron, Hardened Steel, Non-Ferrous
Corner Radius: .062 inches
Cutting Angle: 80 degree
Cutting Direction: Neutral
Cut Type: Roughing
Diameter: 1/2 inches
Shape: 80-Degree Diamond
Thickness: 3/16 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DKC15RT
Finish / Coating: CVD Multi Layer Coating


Features
First Choice: For Roughing Application of Cast Iron, Hardened Steel, Non-Ferrous, with Large Depth of Cut and High Feed per Revolution at Low SFM (Vc), For interrupted Cut, Wet/Dry Working Condition. KER, Molded Chip breaker, Large Chip Breaker Geometry, Positive Rake Angle and Large Honed Cutting Edge, For Roughing Turning Application, to machine Cast Iron, Carbon & Alloy Steel, Stainless Steel, at Large Depth of Cut (ap) and Feed Rate per Revolution (fn).


Grade Description
The DKC15RT grade, has a tough and Impact Resistant Substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, ( Al2O3/TiCN/Al2O3/TiCN) Low Cutting Speed, for Roughing Application with Unstable surface and Castings. For cutting Cast Iron, Hardened Steel, and all non Ferrous Material. Low SFM (Vc) for heavy interrupted Cut.


MPN: 69909
PKG QTY: 10 PCS

Technical Specifications
  • SUPPLIER : Dorian Tool
  • PKG QTY : 10 PACK
  • BRAND : Dorian Tool
  • MPN : 69909
  • UPC : 73310169909
