Dorian 69906, CNMG-433-KER-DKC10UT Carbide Inserts (10 PCS)
Description
Dorian Tool

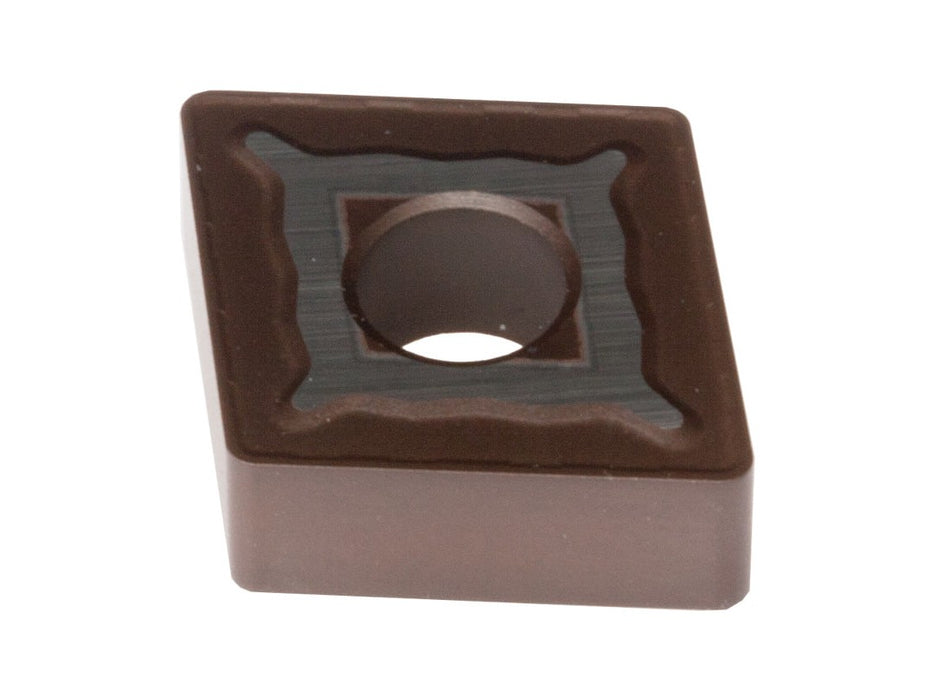

CNMG-433-KER-DKC10UT Carbide Inserts
Technical Specs
Style: CNMG
Chipbreaker: KER
Workpiece Material: Cast Iron, Hardened Steel, Non-Ferrous
Corner Radius: .046 inches
Cutting Angle: 80 degree
Cutting Direction: Neutral
Cut Type: Roughing
Diameter: 1/2 inches
Shape: 80-Degree Diamond
Thickness: 3/16 inches
Rake Type: Positive Rake Angle
Material: Carbide
Grade: DKC10UT
Finish / Coating: CVD Multi Layer Coating
Features
First Choice: For Roughing Application of Cast Iron, Hardened Steel, Non-Ferrous, with Large Depth of Cut and High Feed per Revolution at Medium SFM (Vc), Light interrupted Cut, Wet/Dry Working Condition. KER, Molded Chip breaker, Large Chip Breaker Geometry, Positive Rake Angle and Large Honed Cutting Edge, For Roughing Turning Application, to machine Cast Iron, Carbon & Alloy Steel, Stainless Steel, at Large Depth of Cut (ap) and Feed Rate per Revolution (fn).
Grade Description
The DKC10UT grade, has a hard, tough, wear and abrasive Resistant Substrate with a CVD Multi Layer of Alumina, Titanium Carbonitride Coating, (Al2O3/TiCN/Al2O3/TiCN). Medium Cutting Speed, for Universal Turning Application, from Finishing to Roughing. For cutting Cast Iron, Hardened Steel, and all non Ferrous Material. Medium SFM (Vc) for Light interrupted Cut.
MPN: 69906
PKG QTY: 10 PCS
