Dorian 50712 MTENN86-5E Neutral Toolholder for TNM_543 inserts

Dorian Tool

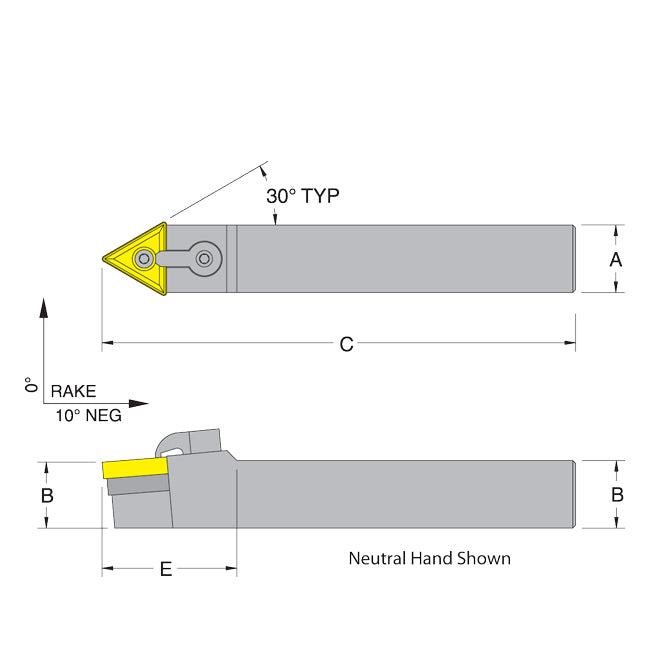

MTEN N Toolholder Style E- 30-Deg. Side Cutting Edge Angle for negative triangle TNM_ inserts

Technical Specs
Brand: Dorian Tool, Tooling Type: Tool Holder, Style: MTEN, Cutting Hand Direction: Left Hand, Shank Size A: 1, Shank Size B: 1.5, Dimension E: 1.625, Dimension F: NA, Overall Length: 7, Gage Insert: TNM_543, Seat Size: ITSN-533, Lock Pin: NL-58, Clamp: CL-9, Clamp Screw: XNS-510, Optional Seat Screw: NA

MPN: 50712
PKG QTY: 1 PC
