Dorian 50350 MDJNR16-5C RH Toolholder for DNM_543 inserts

Dorian Tool

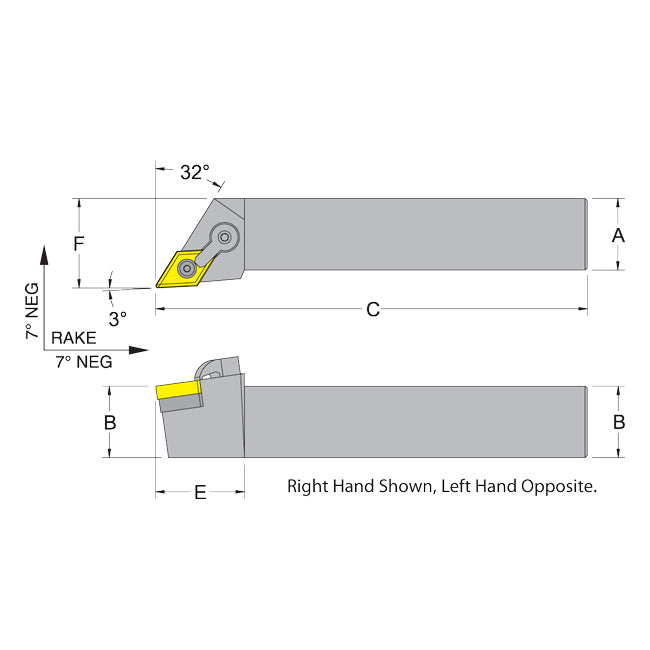

MDJNR Toolholder Style J- 3-Deg. Side Cutting Edge Angle for negative 55-Deg. diamond DNM_ inserts

Technical Specs
Brand: Dorian Tool, Tooling Type: Tool Holder, Style: MDJN, Cutting Hand Direction: Right Hand, Shank Size A: 1, Shank Size B: 1, Dimension E: 1.75, Dimension F: 1.25, Overall Length: 5, Gage Insert: DNM_543, Seat Size: IDSN-533, Lock Pin: NL-58, Clamp: CL-12, Clamp Screw: XNS-510, Optional Seat Screw: S-58

MPN: 50350
PKG QTY: 1 PC
