Dorian 50124 MCLNR16-4C RH Toolholder for CNM_432 inserts

Dorian Tool
MCLNR Toolholder Style L - Negative 5-Deg. End or Side Cutting Edge Angle for negative 80-Deg. diamond CNM_ inserts

Technical Specs

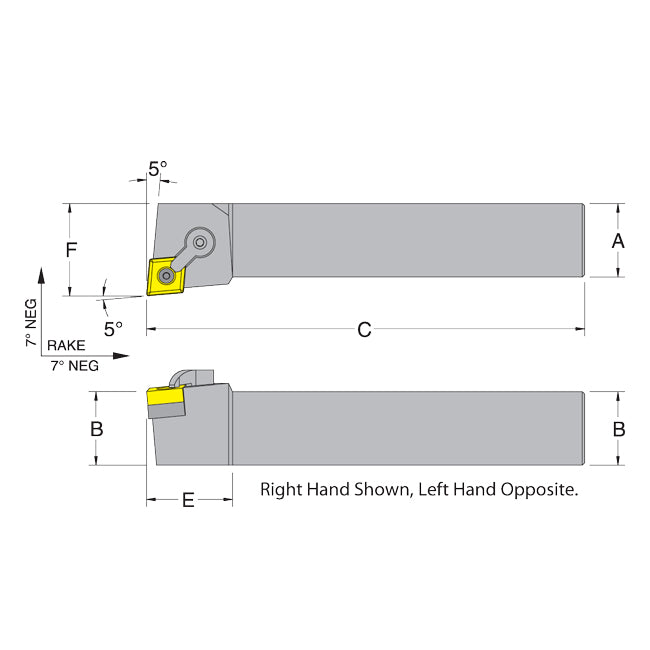

Brand: Dorian Tool, Tooling Type: Tool Holder, Style: MCLN, Cutting Hand Direction: Right Hand, Shank Size A: 1, Shank Size B: 1, Dimension E: 1.25, Dimension F: 1.25, Overall Length: 5, Gage Insert: CNM_432, Seat Size: ICSN-433, Lock Pin: NL-46, Clamp: CL-20, Clamp Screw: XNS-48, Optional Seat Screw: S-46

MPN: 50124
PKG QTY: 1 PC
