Dorian 55027, S24U-MCLNL-5 Boring Bar for CNM_432 Inserts

Dorian Tool

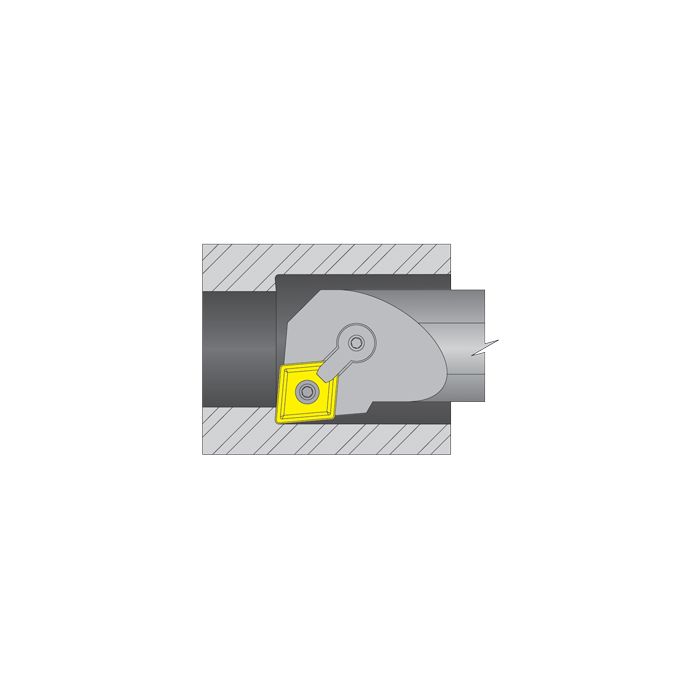

S-MCLNL Boring Bar Style L - Negative 5-Deg. Side and End Cutting Edge Angle for negative 80-Deg. diamond CNM_ inserts

Techinical Specs
Brand: Dorian Tool, Tool Designation: S24U-MCLNL-5, Tooling Type: Boring Bar, Cutting Hand Direction: Left Hand, Bar Diameter: 1.50, Overall Length: 14, Min. Bore: 2.374, Gage Insert: CNM_432, Seat Size: ICSN-433, Lock Pin: NL-46, Clamp: CL-20, Clamp Screw: XNS-48, Optional Seat Screw: S-46

MPN: 55027
PKG QTY: 1 PC
