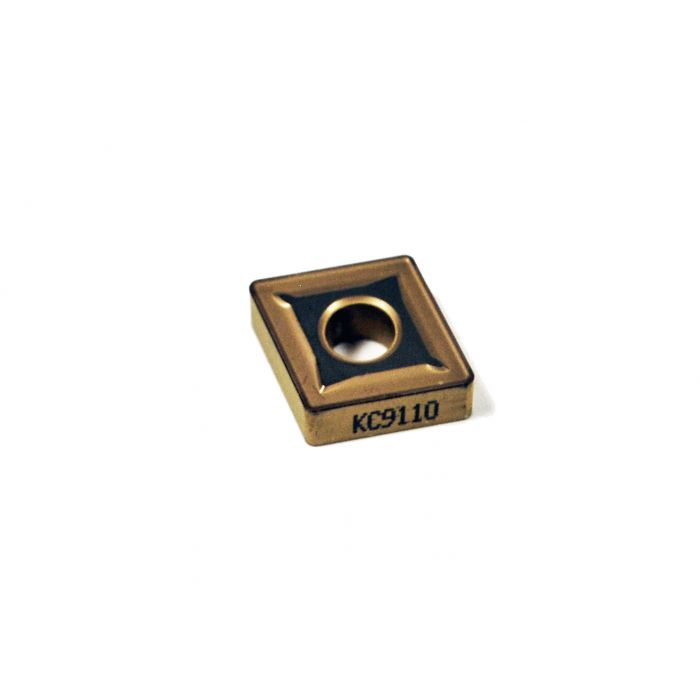

Kennametal CNMG 432 KC9110 Carbide Inserts (10 PCS) 1159041

Kennametal
CNMG 432 KC9110 Carbide Inserts (10 PCS) 1159041

Specs
Insert Style: CNMG
Insert Size: 432
Material: Carbide
Length (mm): 12.90
Length (Decimal Inch): 0.5079
Inscribed Circle (Decimal Inch): 0.5000
Inscribed Circle (Inch): 1/2
Thickness (Inch): 3/16
Thickness (Decimal Inch): 0.1875
Corner Radius (Inch): 1/32
Corner Radius (Decimal Inch): 0.0312
Insert material: CARBIDE - CVD COATED
ISO range: P05-20 M10-20, Steels and Stainless Steels
Coating: Multilayer Al2O3+TiCN
Hole Diameter (mm): 5.16
Hole Diameter (Decimal Inch): 0.2031
Rake: Negative
Relief Angle: 0
Included Angle: 80
Insert Hand: Neutral
Corner Radius (Decimal Inch): 1/32

MPN: 1159041
PKG QTY: 10 PCS
