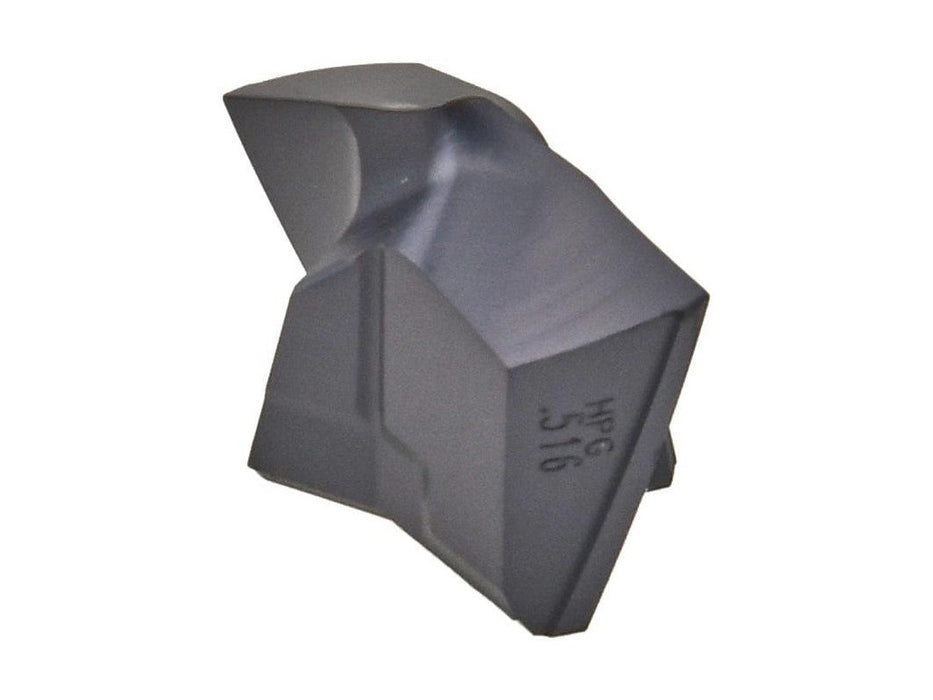

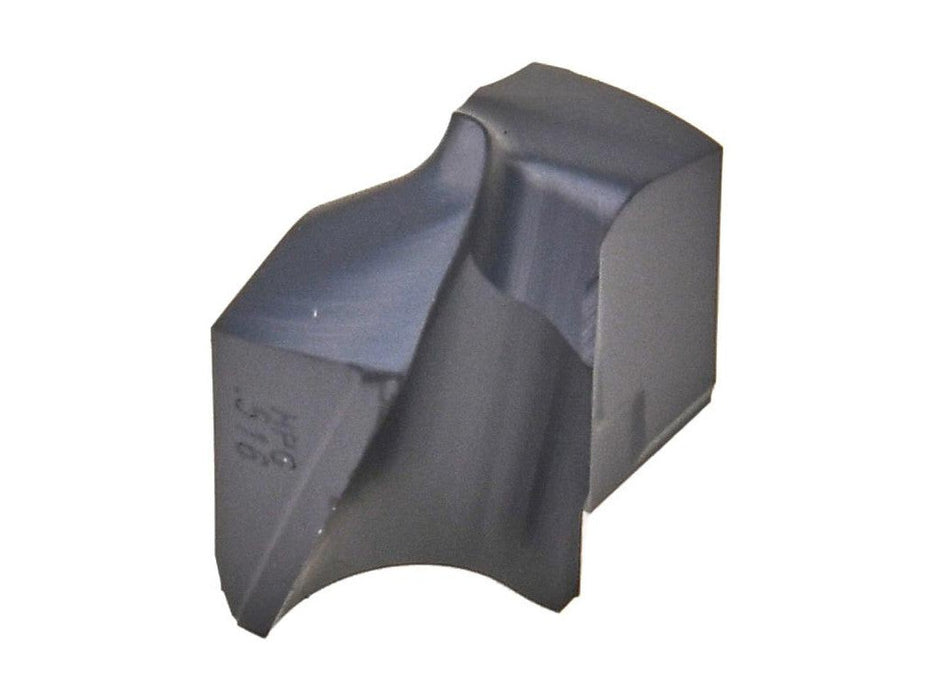

Kennametal KSEM0516HPG KC7315 Replaceable Drill Tip, Carbide, 2499609

Kennametal
KSEM0516HPG KC7315 Carbide Replaceable Drill Tip, 0.5157" Dia, 13.10 mm Dia, 140 deg Point, KC7315, Seat Size C, TiAlN Finish, Through Coolant, 2499609

Specs
Cutting Diameter (Inch):33/64
Cutting Diameter (Decimal Inch):0.5157
Cutting Diameter (mm): 13.10
Tip Material: Solid Carbide
Manufacturer Grade: KC7315
Material Grade: Fine Grain
Series: KSEM
Coating Process: PVD
Insert Geometry: HPG
Insert Seat Size: C
Functional Length (Decimal Inch): 0.2580
Primary Workpiece Material: Cast Iron; Steel
Primary Workpiece Material Code: P; K
Height (mm): 7.00
Overall Length/Projection (Decimal Inch): 0.2580
Drill Point Angle: 140
Flute Type: Helical
Insert Holding Method: Clamp
ISO Number: KSEM0516HPG
Coolant Through: Yes
Flute Length (mm): 7.00
Point Type: Standard
Spiral Type: Regular Spiral
Style:     KSEM
UNSPSC Code: 23242105
Applications: Drilling

MPN: 2499609
PKG QTY: 1 PC

Location: SUR-STC-315
