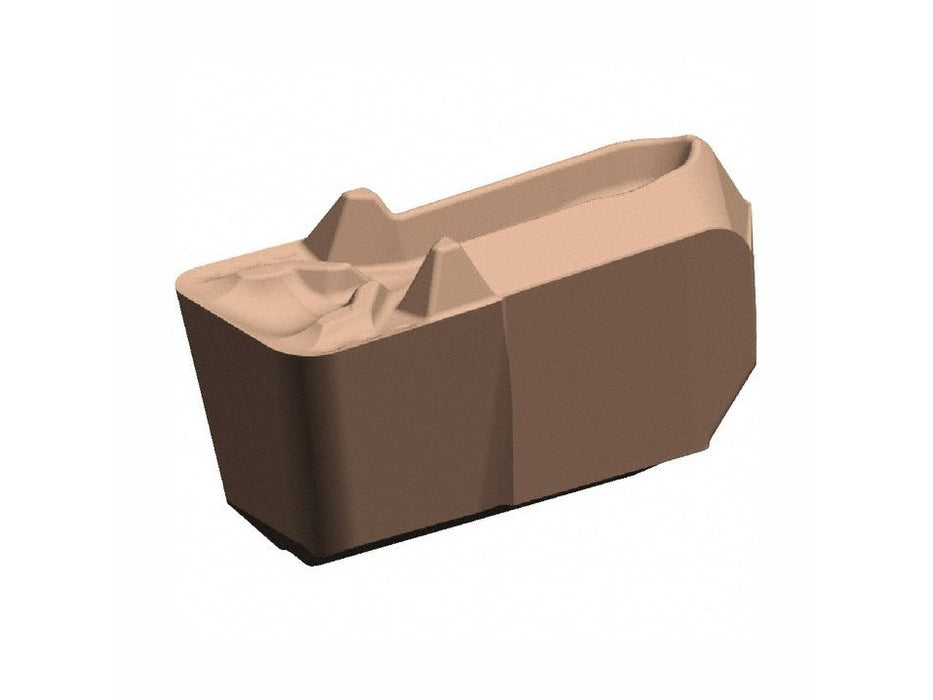

Kennametal EG094I02P05GUP KCU10 Carbide Grooving Inserts (10 PCS) 6012710

Kennametal
EG094I02P05GUP KCU10 Carbide Grooving Inserts (10 PCS)  6012710, Neutral, 2.39 mm Cutting Width, 1.74 mm Max Depth, Series Beyond Evolution

Specs
Insert Style: EG-P
Cutting Width (Decimal Inch): 0.0940
Cutting Width (mm): 2.39
Insert Hand: Neutral
Maximum Depth of Cut (Decimal Inch): 0.0680
Maximum Depth of Cut (mm): 1.74
Insert Material: Carbide
Manufacturer Grade: KCU10
Full Radius: No
Corner Radius (Decimal Inch): 0.0080
Corner Radius (mm): 0.20
Rake: Positive
Measurement Type: Metric
Insert Size: 2
Cutting Height (mm): 3.25
Maximum Depth Of Cut Range (Decimal Inch): 0.0000 to 0.0750
Cutting Height (Decimal Inch): 0.1280
Maximum Depth Of Cut Range (mm): 0.00 to 2.00
Multi-use Tool: No
Series: Beyond Evolution
Coating Process: PVD
Rake Angle: 22
Overall Length (Decimal Inch): 0.35
Insert Thickness (Decimal Inch): 0.1280
UNSPSC Code: 23242105
Chip Breaker: GUP
Overall Width (mm): 2.39
Overall Width (Decimal Inch - 4 Decimals): 0.094
Country of Origin: Germany

MPN: 6012710
PKG QTY: 10 PCS
